Power, Ground, Data Communication and Indicators

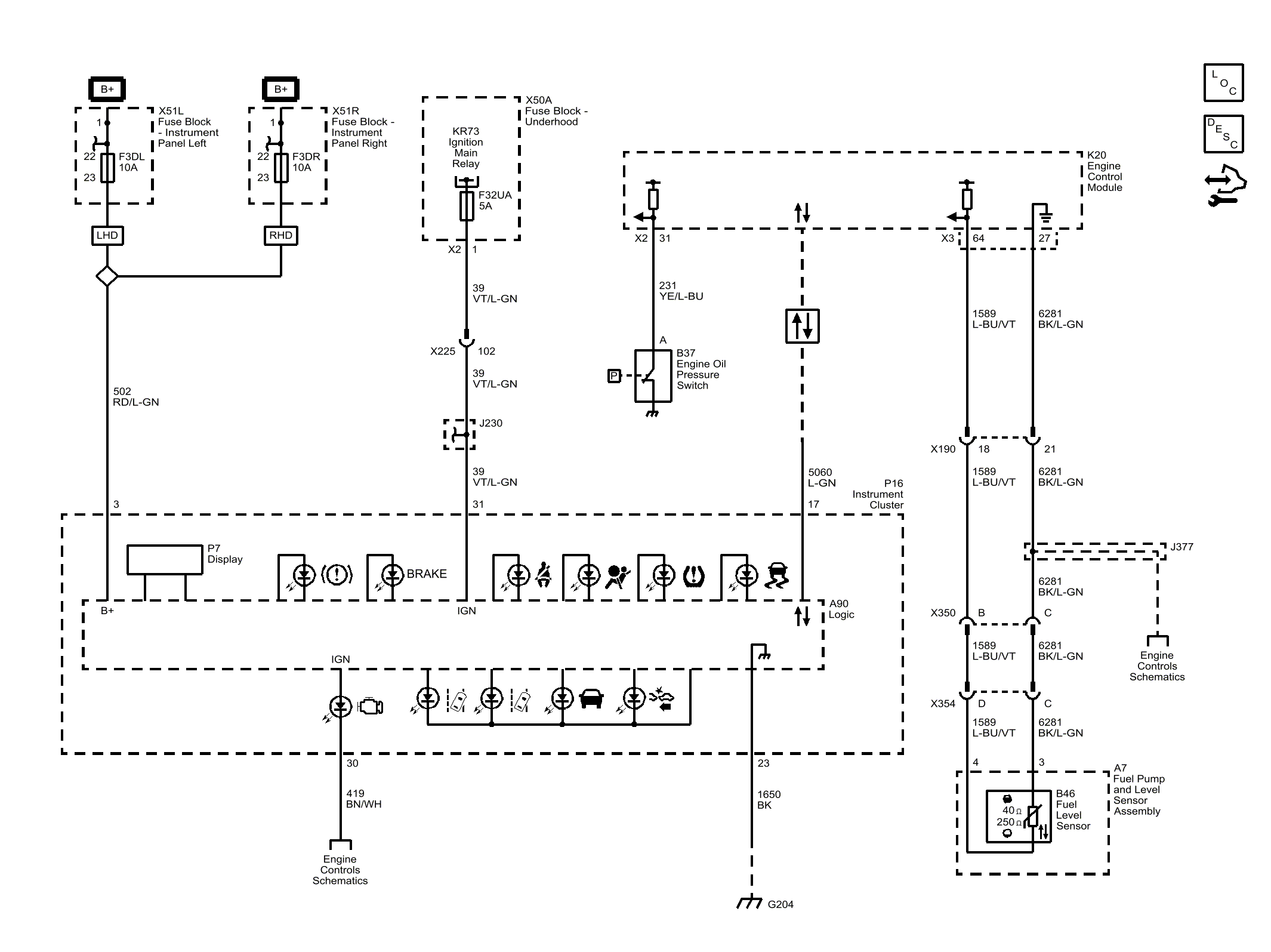

Fig 1: Power, Ground, Data Communication and Indicators

GM3745485

Courtesy of GENERAL MOTORS COMPANY
