Drive Range, First Gear - A/T System Hydraulic Diagram

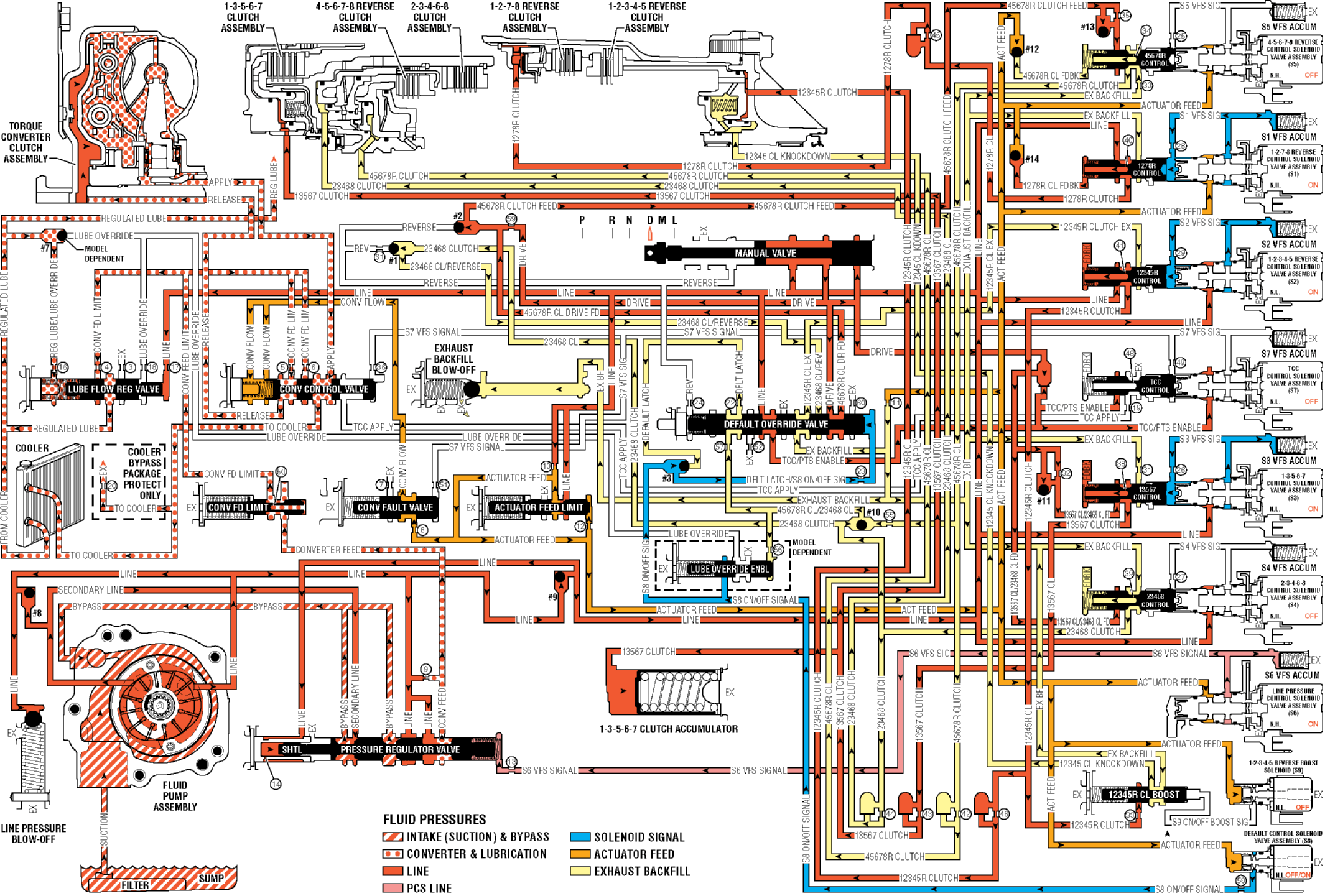

Fig 1: Drive Range, First Gear - A/T System Hydraulic Diagram

GM3803524

Courtesy of GENERAL MOTORS COMPANY
