Rear Bumper Fascia Replacement (Chevrolet, GMC)

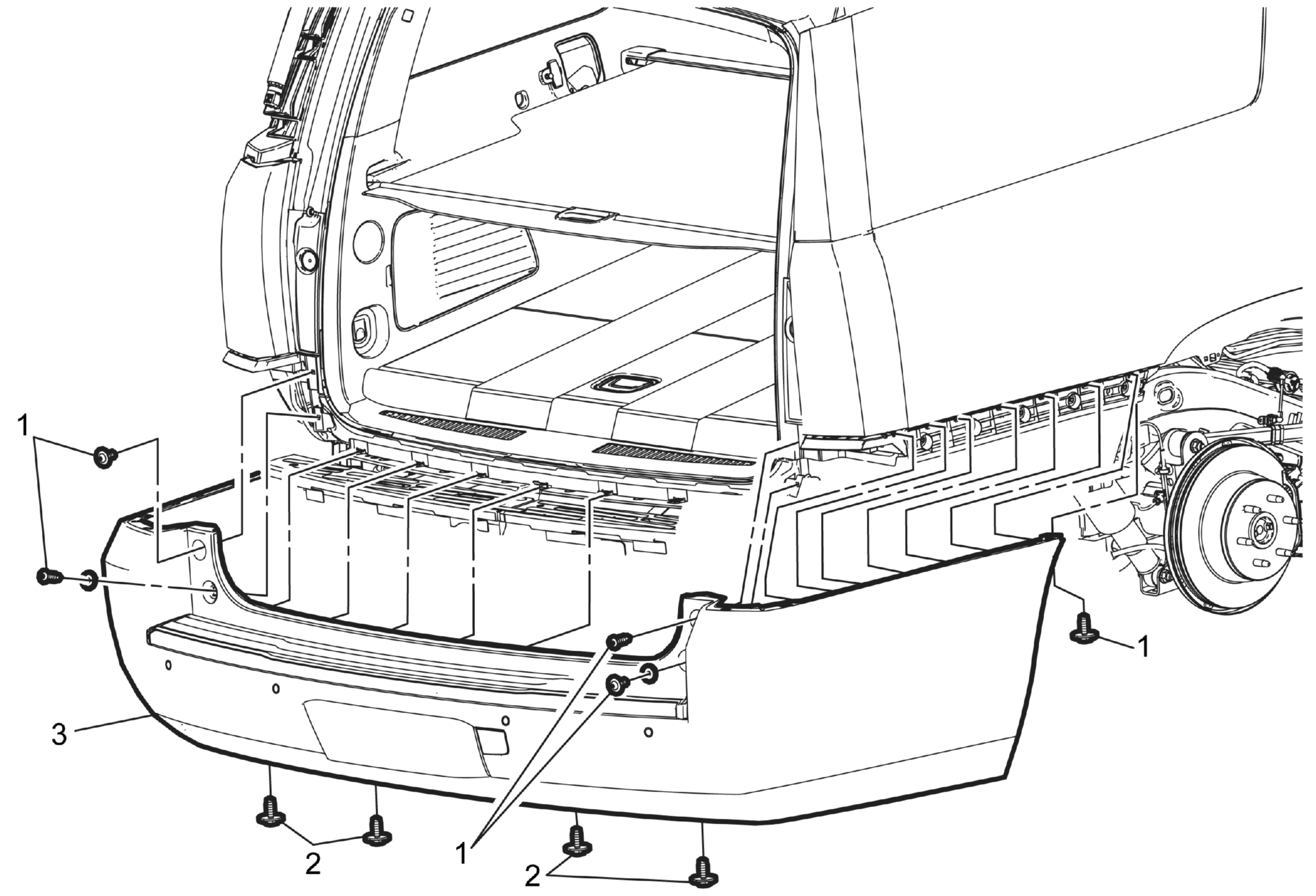

Fig 1: Rear Bumper Fascia (Chevrolet, GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove only the rear wheelhouse liner bolts retaining the liner to the rear fascia. Refer to Rear Wheelhouse Liner Replacement (LWB)Rear Wheelhouse Liner Replacement (LWB Z75)Rear Wheelhouse Liner Replacement (SWB Z75)Rear Wheelhouse Liner Replacement (SWB) .
1	Rear Bumper Fascia Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Fascia Lower Bolt (Qty: 4) Tighten 7 N.m (62 lb in)
3	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide. Disconnect the electrical connector. Transfer parts as needed.
