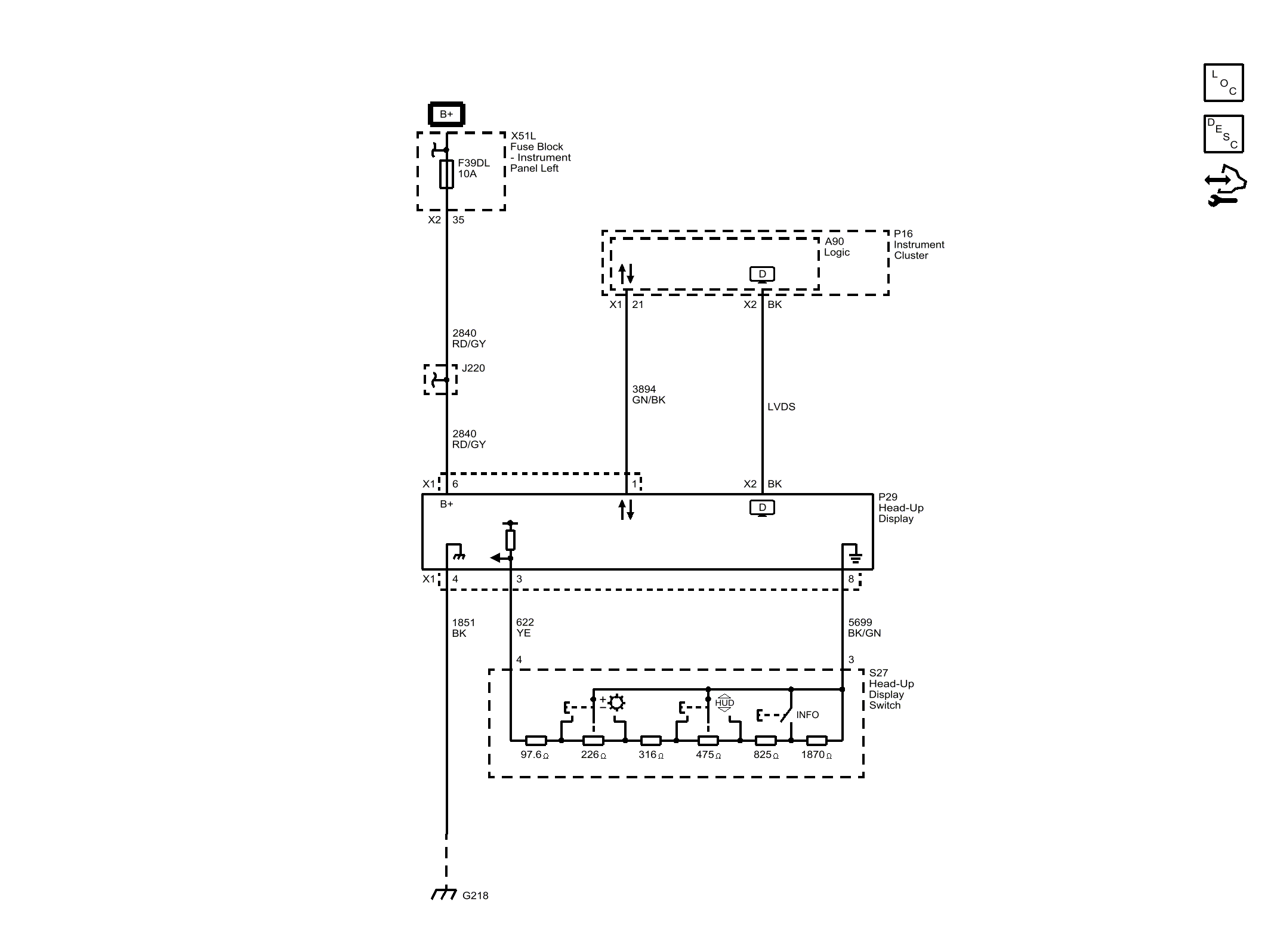

Home >> Chevrolet >> 2015 >> Tahoe SSV >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Head-Up Display Wiring Schematics >> Head-Up Display Schematics
