Engine Oil Pressure Indicator Switch Replacement

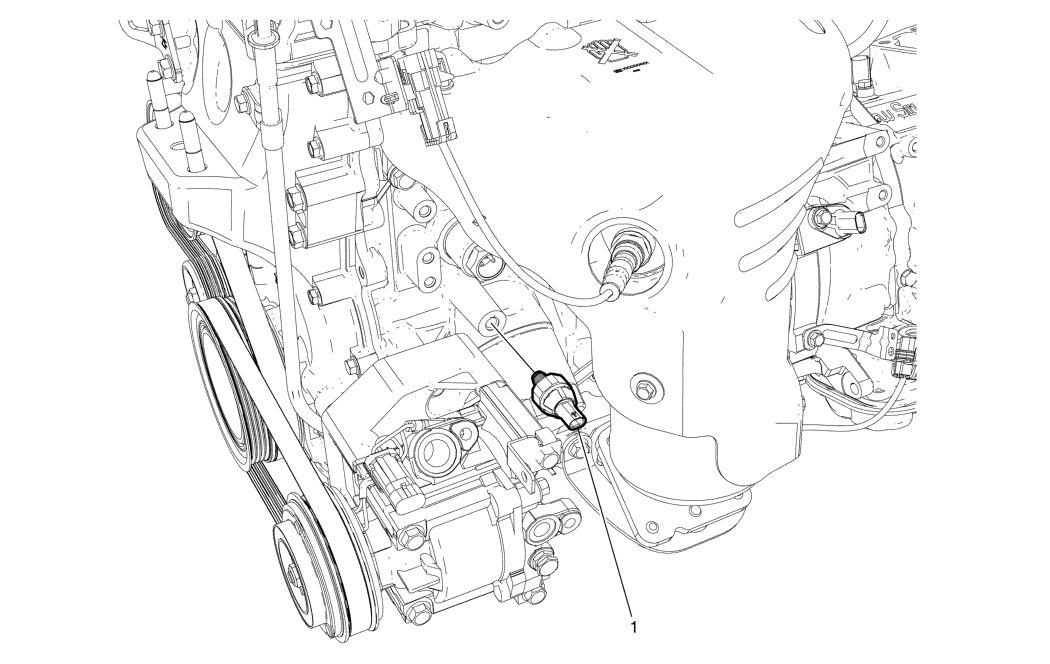

Fig 1: Engine Oil Pressure Indicator Switch
GM2810223Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Oil Pressure Indicator Switch
CAUTION: Refer to Fastener Caution .

Procedure
Disconnect the oil pressure indicator switch electrical wiring harness connector and remove the oil pressure indicator switch.
Tighten
35 N.m (26 lb ft)
