X111 Forward Lamp Harness to Engine Harness

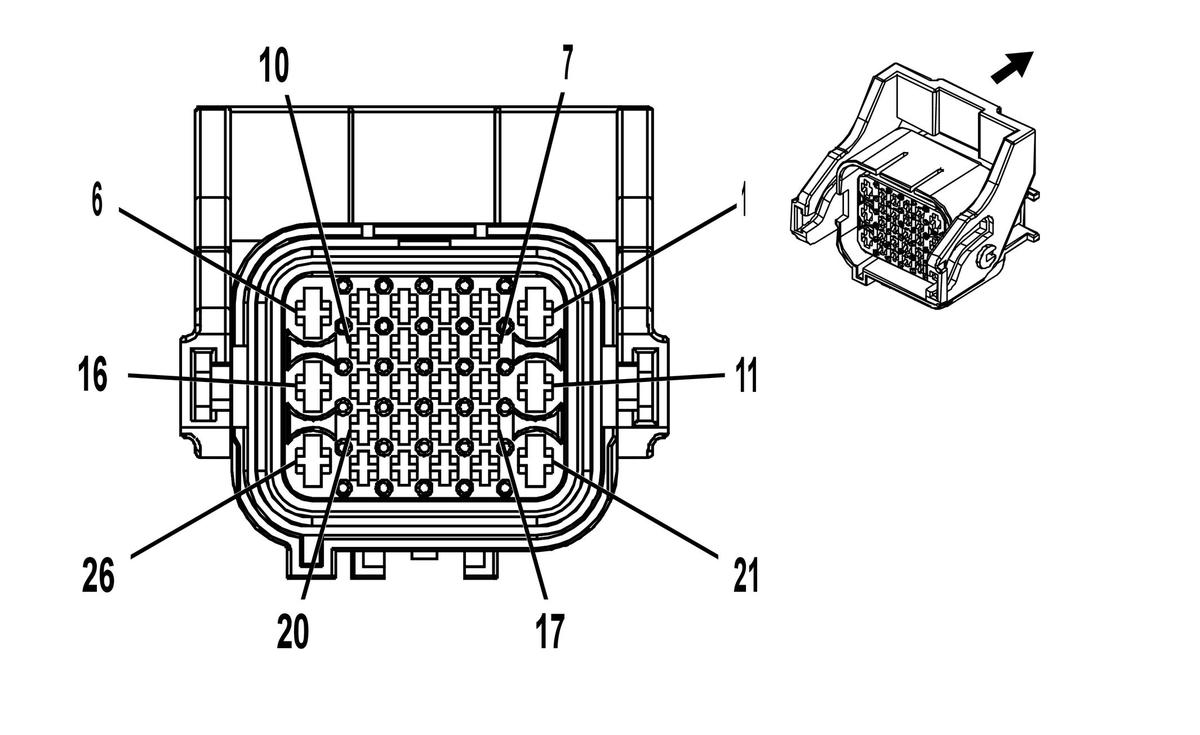

GM3814542

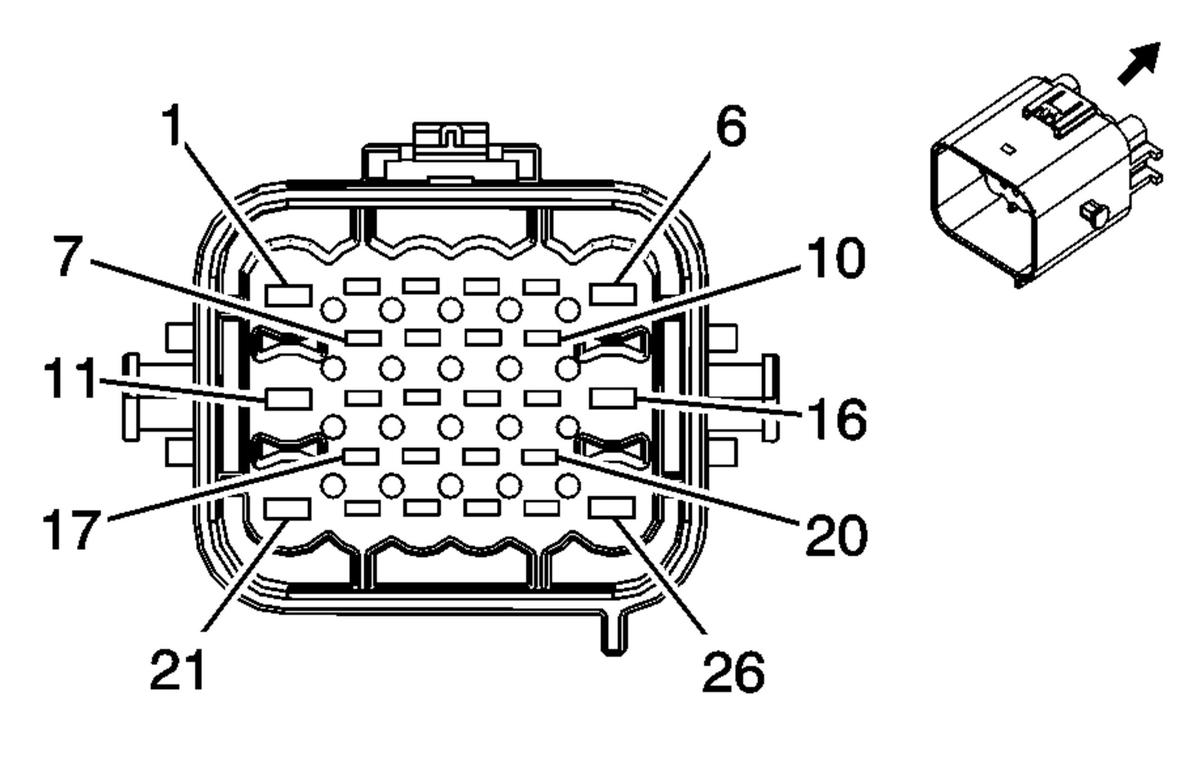

GM2969696
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 1897009-2
  • Service Connector: 13579377
  • Description: 26-Way F 1.5 Micro-Timer 2, 2.8 Junior Power Timer Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 1897013-2
  • Service Connector: 13579378
  • Description: 26-Way M Micro-Timer II, Junior Power Timer Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575362 J-35616-35 (VT) J-38125-36 4-964286-1 Lear 16 E 1
II 13576368 J-35616-14 (GN) J-38125-560 4-969005-1 Lear 16 E 1
III 13578837 J-35616-35 (VT) J-38125-36 Not Available Not Available Not Available Not Available
IV 13575350 J-35616-5 (PU) J-38125-36 1-962915-3 Yazaki 15 E 1
V 13575593 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 E 2
VI 13578827 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 RD/YE 3040 III EVP Battery Positive Voltage 1 2.5 RD/YE 3040 VI EVP
2 0.5 GY 830 II - Wheel Speed Sensor Signal Left Front 2 0.5 GY 830 V JM4/FX3
3 0.5 GY/WH 7064 II - Wheel Speed Sensor Control Left Front 3 0.5 GY/WH 7064 V JM4/FX3
4 0.5 BN 6305 II EVP Brake Vacuum Switch Signal 4 0.5 BN 6305 V EVP
5 0.5 BK/BU 6813 II - Coolant Temperature Sensor 2 Low Reference 5 0.5 BK/BU 6813 V (LFP/LFM/LL0)-M4M
6 2.5 BK 50 III EVP Ground 6 2.5 BK 350 VI EVP
7 0.5 YE/BK 3000 II - Coolant Temperature Sensor 2 Signal 7 0.5 YE/BK 3000 V (LFP/LFM/LL0)-M4M
8 0.5 BK/BU 1271 II - Accelerator Pedal Position Low Reference 1 8 0.5 BK/BU 1271 V (LFP/LFM/LL0)-M4M
9 0.5 YE/WH 1161 II - Accelerator Pedal Position Signal 1 9 0.5 YE/WH 1161 V (LFP/LFM/LL0)-M4M
10 0.5 WH/RD 1164 II - Accelerator Pedal Position 5V Reference 1 10 0.5 WH/RD 1164 V (LFP/LFM/LL0)-M4M
11 0.5 YE/RD 2709 II - Fuel Tank Pressure Sensor 5V Reference 11 0.5 YE/RD 2709 IV (LFM/LL0)+(CW1/EF7/Z49)-M4M-LFP
12 0.5 BK/VT 1272 II - Accelerator Pedal Position Low Reference 2 12 0.5 BK/VT 1272 V (LFP/LFM/LL0)-M4M
13 0.5 GN/WH 1162 II - Accelerator Pedal Position Signal 2 13 0.5 GN/WH 1162 V (LFP/LFM/LL0)-M4M
14 0.5 BN/RD 1274 II - Accelerator Pedal Position 5V Reference 2 14 0.5 BN/RD 1274 V (LFP/LFM/LL0)-M4M
15 0.5 BK/BU 510 II - Fuel Sender Low Reference 15 0.5 BK/BU 510 V (LFP/LFM/LL0)-M4M
16 0.5 BU/WH 890 II - Fuel Tank Pressure Sensor Signal 16 0.5 BU/WH 890 IV (LFM/LL0)+(CW1/EF7/Z49)-M4M-LFP
17 0.5 WH 2501 II - High Speed GMLAN Serial Data (-) 1 17 0.5 WH 2501 V MNG
18 0.5 BU 2500 II - High Speed GMLAN Serial Data (+) 1 18 0.5 BU 2500 V MNG
19 0.5 BU/VT 1589 II - Primary Fuel Level Sensor Signal 19 0.5 BU/VT 1589 V (LFP/LFM/LL0)-M4M
20 0.5 WH 5359 II - Brake Apply Sensor Control 20 0.5 WH 5359 V MNG
21 0.5 WH 1310 II - EVAP Canister Vent Solenoid Control 21 0.5 WH 1310 IV (LFM/LL0)+(CW1/EF7/Z49)-M4M
22 0.5 BU/YE 5361 II - Brake Apply Sensor Signal 22 0.5 BU/YE 5361 V MNG
23 0.5 BK/BN 5360 II - Brake Apply Sensor Low Reference 23 0.5 BK/BN 5360 V MNG
24 0.35 WH/BU 6311 II - Cruise/ETC/TCC Brake Signal 24 0.5 WH/BU 6311 V (LFP/LFM/LL0)-M4M
25 0.5 VT/YE 5985 II - Accessory Wakeup Serial Data 25 0.5 VT/YE 5985 V MNG
26 0.5 BN/WH 419 I - Check Engine Indicator Control 26 0.5 BN/WH 419 IV (LFP/LFM/LL0)-M4M
