S46B Liftgate Unlatch Switch (Without AU3)
|
|

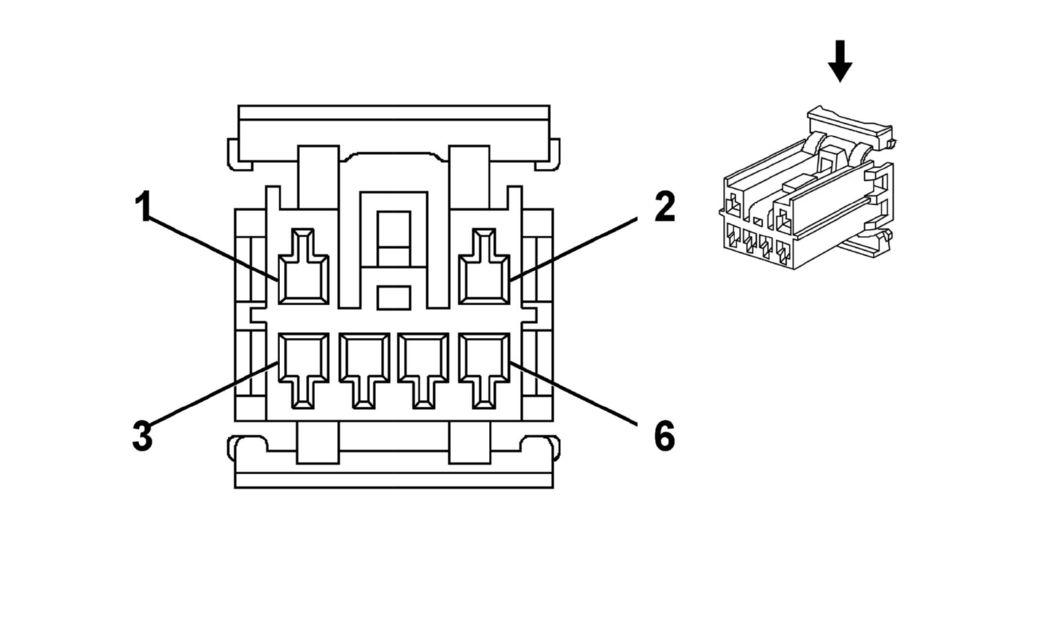

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: MG610398
- Service Connector: 19259743
- Description: 6-Way F 2.7 Series, Sealed (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GN |
5669 |
Gear Motor Module Lift Gate Open Signal |
I |
- |
| 3 |
0.35 |
BU |
5670 |
Gear Motor Module Lift Gate Close Signal |
I |
- |
| 4 |
0.5 |
BK |
850 |
Ground |
I |
- |
| 5 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 6 |
0.5 |
BK |
850 |
Ground |
I |
- |
