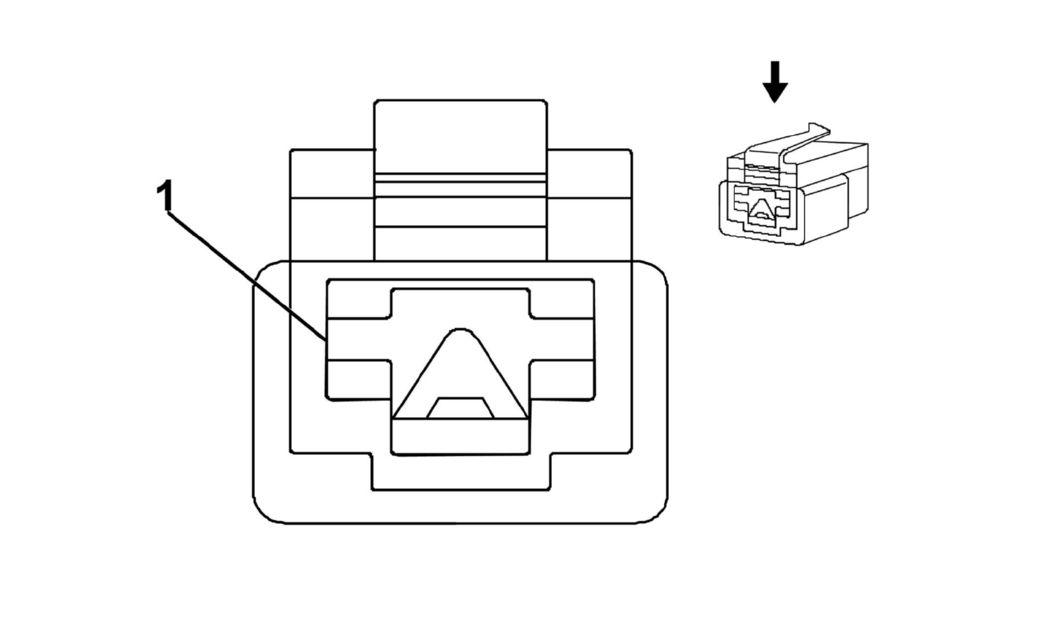

S33 Horn Switch
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 174196-1
- Service Connector: Service by Harness See Part Catalog
- Description: 1-Way F 250 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-3 (GY) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
3287 |
Horn Switch Signal |
I |
- |
