S32P Seat Heating Switch - Passenger

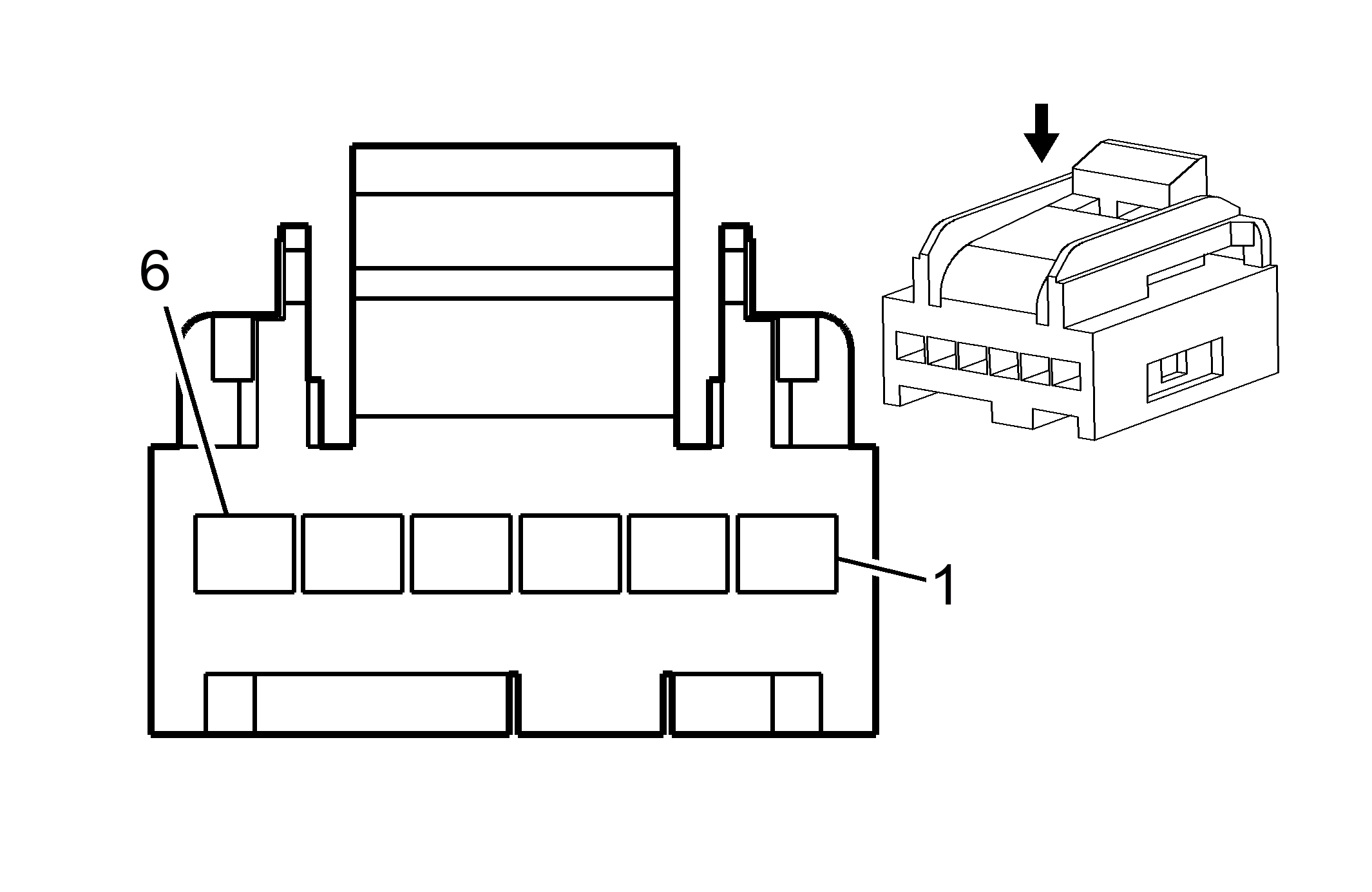

Connector Part Information Harness Type: Instrument Panel OEM Connector: 15499929 Service Connector: 19301386 Description: 6-Way F Micro-Pack HVT Series (OG)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-16 (LT GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	BK	750	Ground	I	C37/C38
2	0.75	VT/BN	341	Run Ignition 3 Voltage	I	C37/C38
3	0.75 0.75	BN/GY YE/BU	1462 1505	Heated Seat Switch Signal Passenger Heated Seat Switch Signal	I	- C37/C38
4	-	-	-	Not Occupied	-	-
5	0.35	BK	750	Ground	I	C37/C38
6	0.35	YE	6817	LED Backlight Dimming Control	I	C37/C38
