Q38 Throttle Body (MNG)

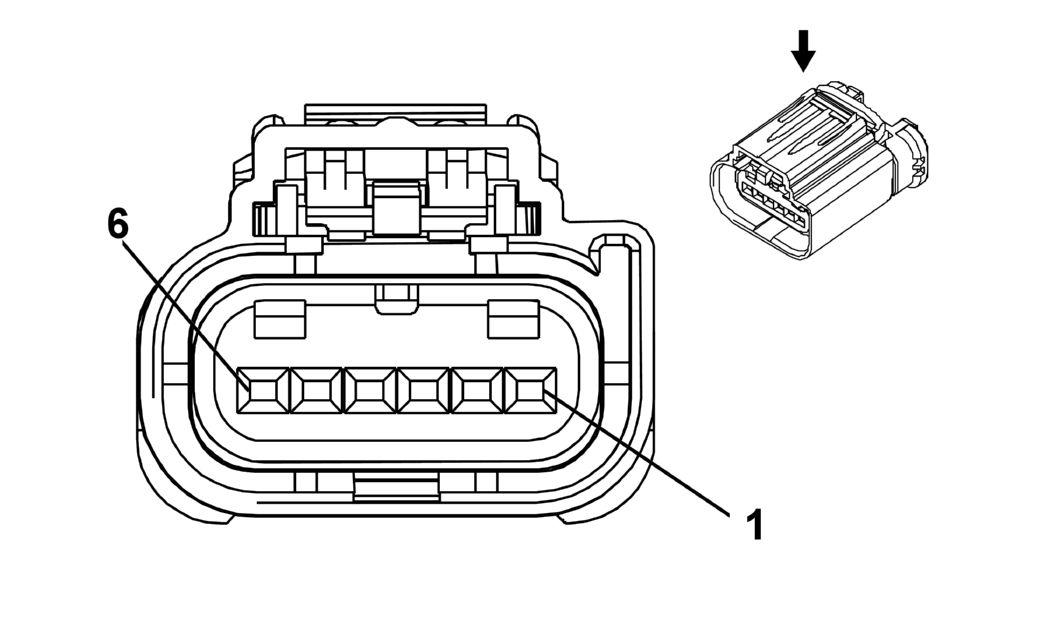

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | YE | 581 | Throttle Actuator Control Open | I | - |
| 2 | 0.75 | BN/WH | 582 | Throttle Actuator Control Close | I | - |
| 3 | 0.5 | BN/GN | 485 | Throttle Position Sensor Signal 1 | I | - |
| 4 | 0.5 | BK/BN | 2752 | Throttle Position Sensor Low Reference | I | - |
| 5 | 0.5 0.5 |
GY/RD BN/RD |
416 2701 |
Throttle Position Sensor 5V Reference | I | LFM/LLO+LHD LL0+RHD |
| 6 | 0.5 | BN/BU | 486 | Throttle Position Sensor Signal 2 | I | - |
