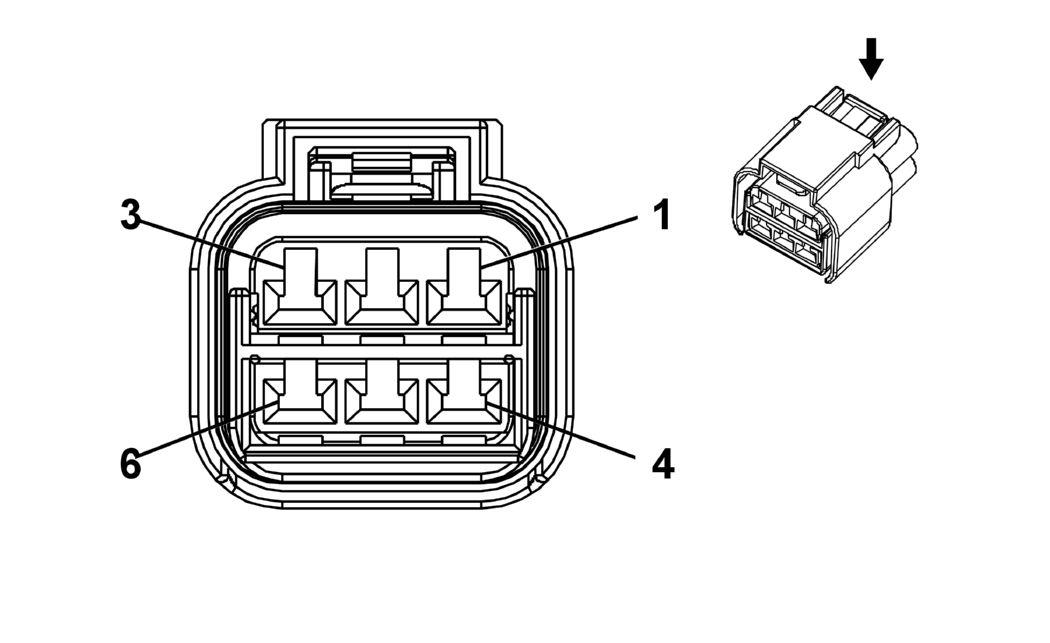

M75 Windshield Wiper Motor (RHD)
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 936257-2
- Service Connector: 13577011
- Description: 6-Way F 090 II Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
WH |
92 |
Windshield Wiper Motor High Speed Control |
I |
RHD |
| 2 |
2 |
YE/BN |
95 |
Windshield Wiper Motor Low Speed Control |
I |
RHD |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
2 |
BK |
150 |
Ground |
I |
RHD |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
BN/GN |
196 |
Windshield Wiper Motor Park Switch Signal |
I |
RHD |
