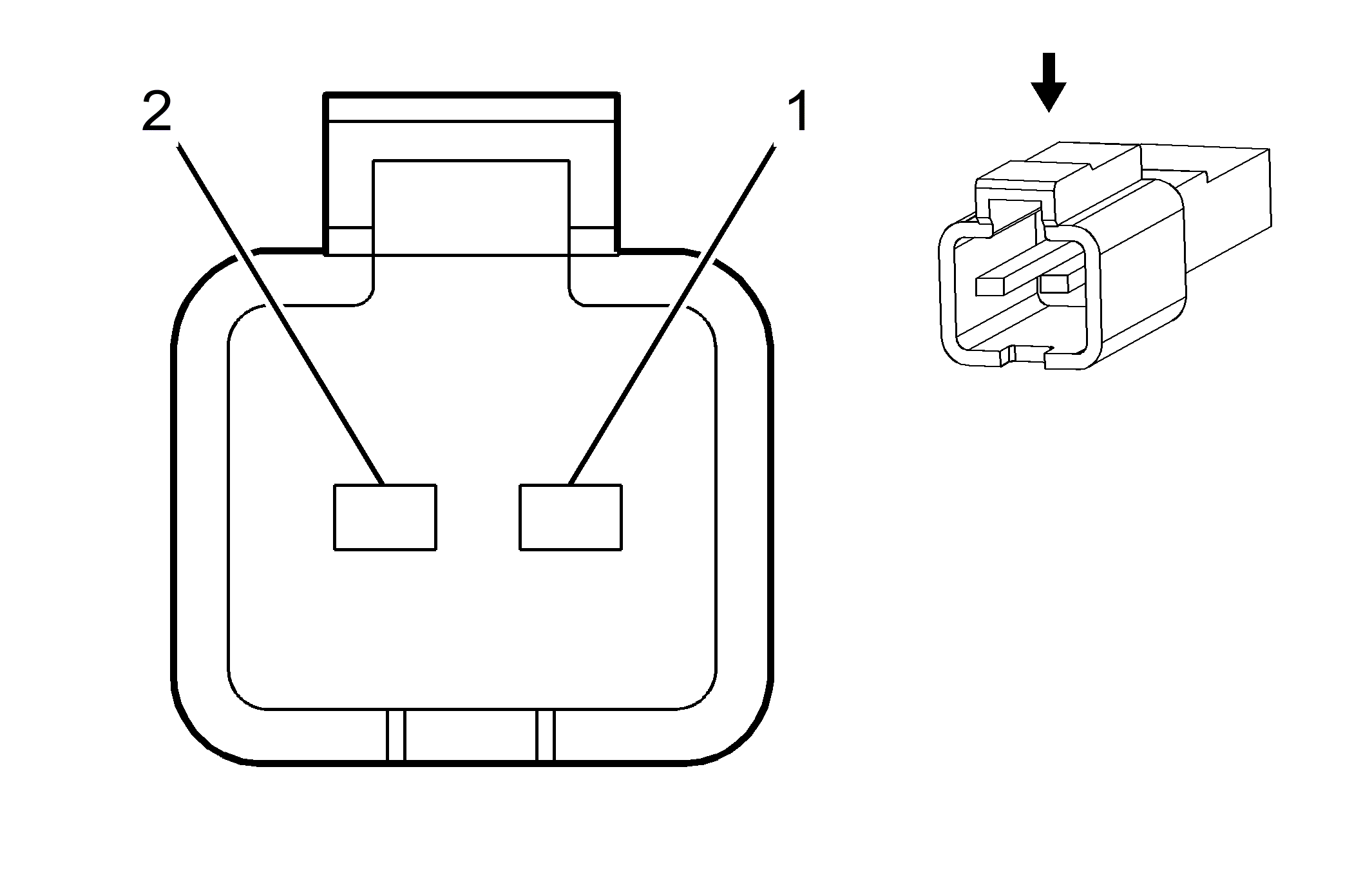

M14B Door Lock Actuator - Liftgate
|
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: MG620490
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 090 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-19 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY |
295 |
Door Lock Actuator Lock Control |
I |
- |
| 2 |
0.5 |
BN/YE |
294 |
Door Lock Actuator Unlock Control |
I |
- |
