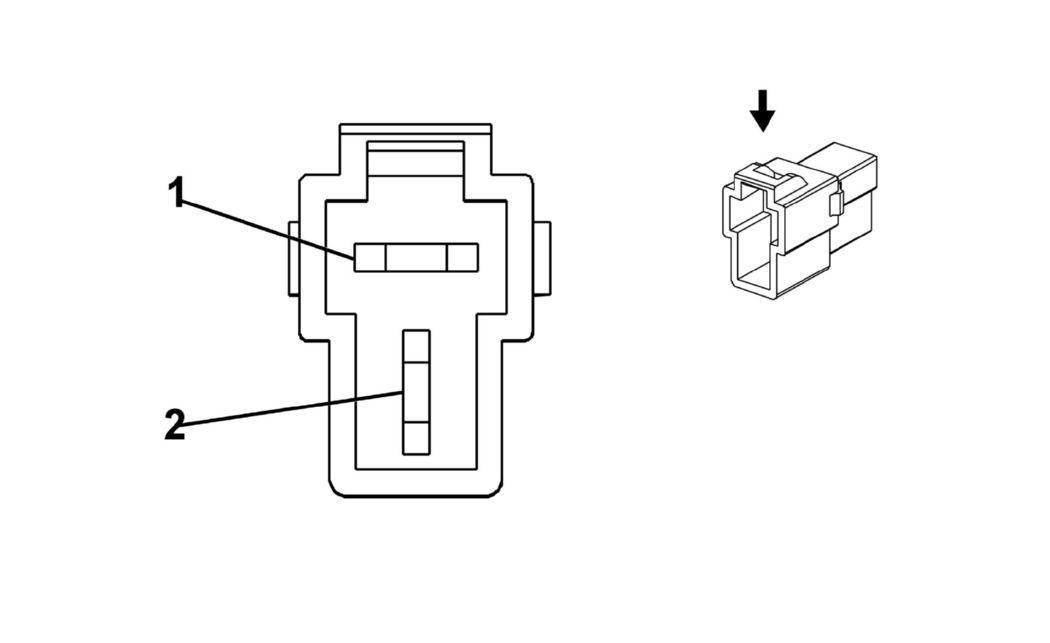

G10 Cooling Fan Motor
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: MG620042-5
- Service Connector: 19329940
- Description: 2-Way M 250 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-41 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
GY |
532 |
Cooling Fan Motor Control 2 |
I |
- |
| 2 |
2.5 |
BK |
50 |
Ground |
I |
- |
