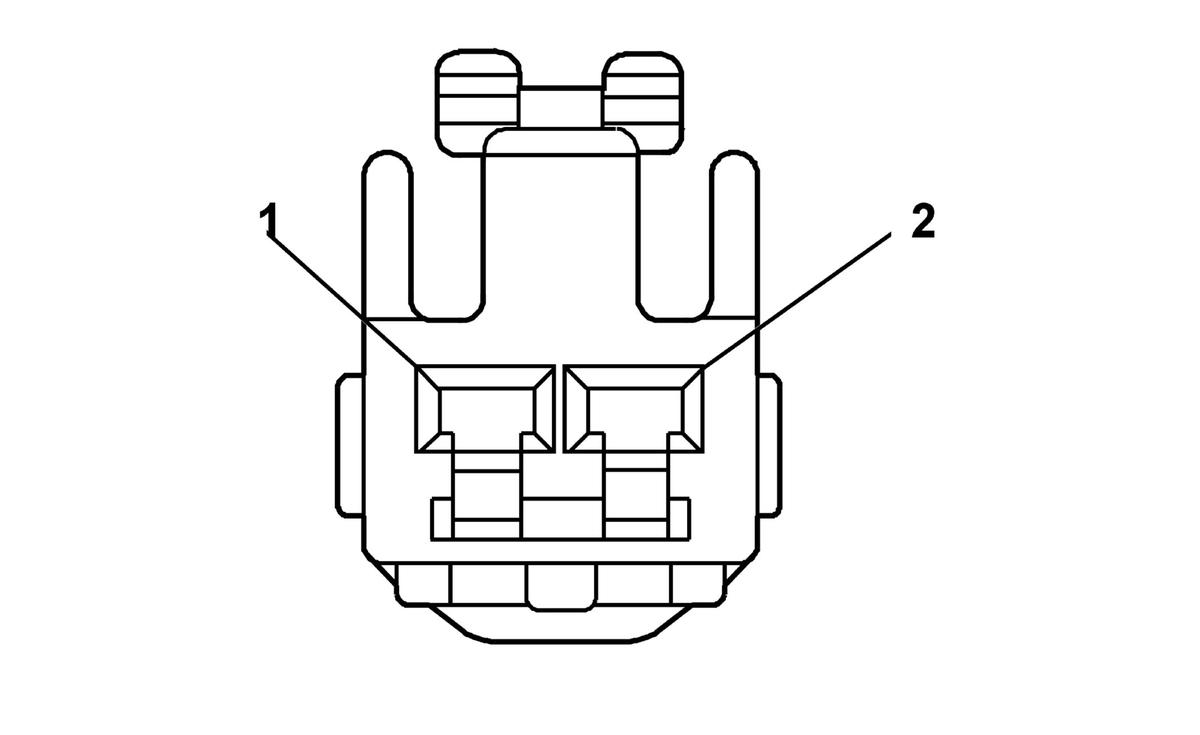

E41 Engine Coolant Thermostat Heater
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 1928403920
- Service Connector: 13577023
- Description: 2-Way F 090 II Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BU |
6814 |
Thermostat Engine Cool Control |
I |
- |
| 2 |
0.75 |
VT/BU |
5291 |
Powertrain Main Relay Fused Supply 2 |
I |
- |
