B23E Camshaft Position Sensor - Exhaust

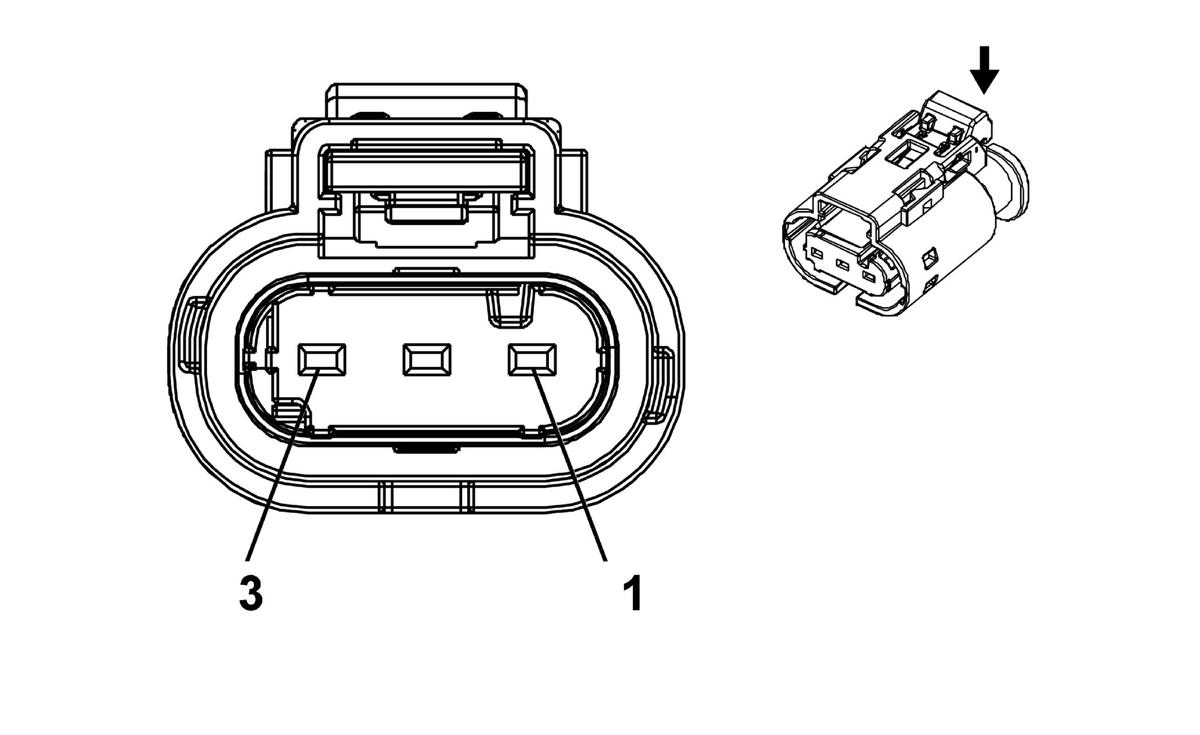

Connector Part Information Harness Type: Engine OEM Connector: 9406621 Service Connector: 19301824 Description: 3-Way F 1.2 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-16 (LT GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	WH/BU	6260	Camshaft CAM Y Control	I	-
2	0.5 0.5	BK/VT VT/BK	6268 6268	Camshaft CAM Y Ground	I	- -
3	0.5	YE	6263	Camshaft CAM Y Signal	I	-
