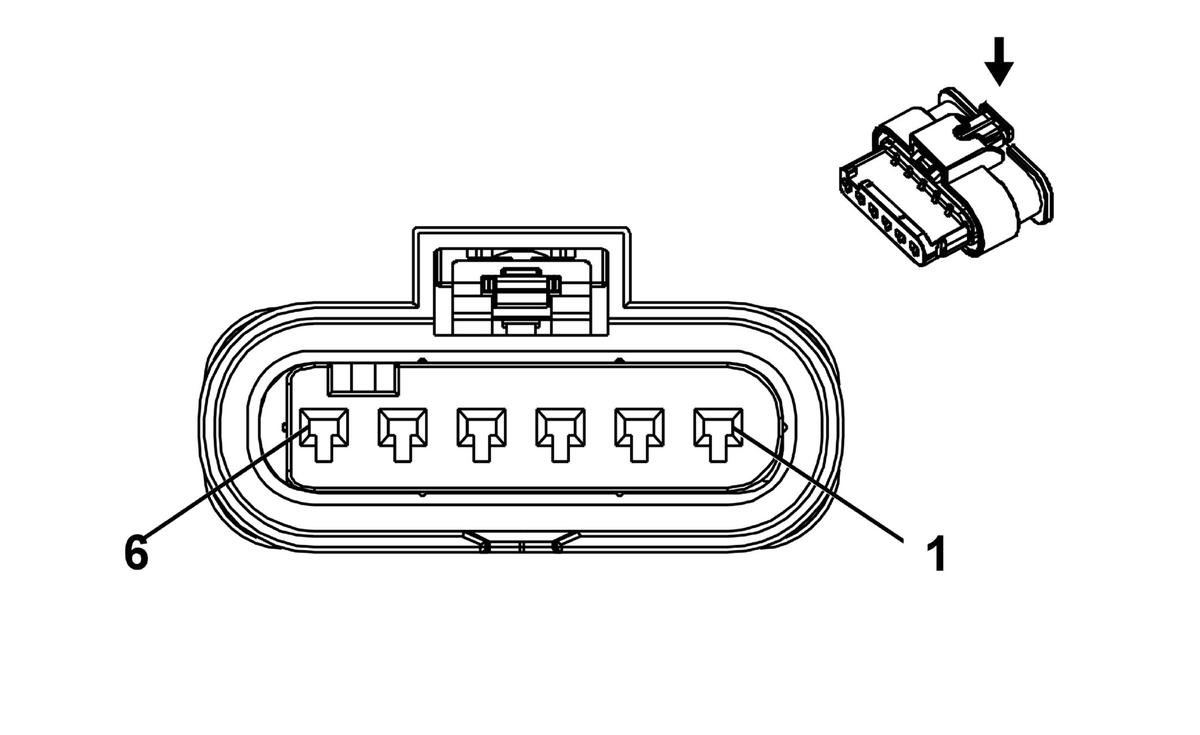

B153P Seat Belt Buckle - Passenger
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 1-2141530-5
- Service Connector: 19300377
- Description: 6-Way F 1.2 MCP Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/OG |
1361 |
Passenger Seat Belt Switch Low Reference |
I |
TFC+(EF7/Z49) |
| 2 |
0.5 |
OG/VT |
1362 |
Passenger Seat Belt Switch Signal |
I |
TFC+(EF7/Z49) |
| 3 |
0.35 |
BU |
3486 |
Traction Power Inverter Module Resolver 2 Excitation Signal Positive |
I |
AYF |
| 4 |
0.5 |
BK |
650 |
Ground |
I |
AYF |
| 5 |
0.35 |
WH/GN |
3485 |
Transmission Traction Power Inverter Module Resolver 2 Excitation Signal Negative |
I |
AYF |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
