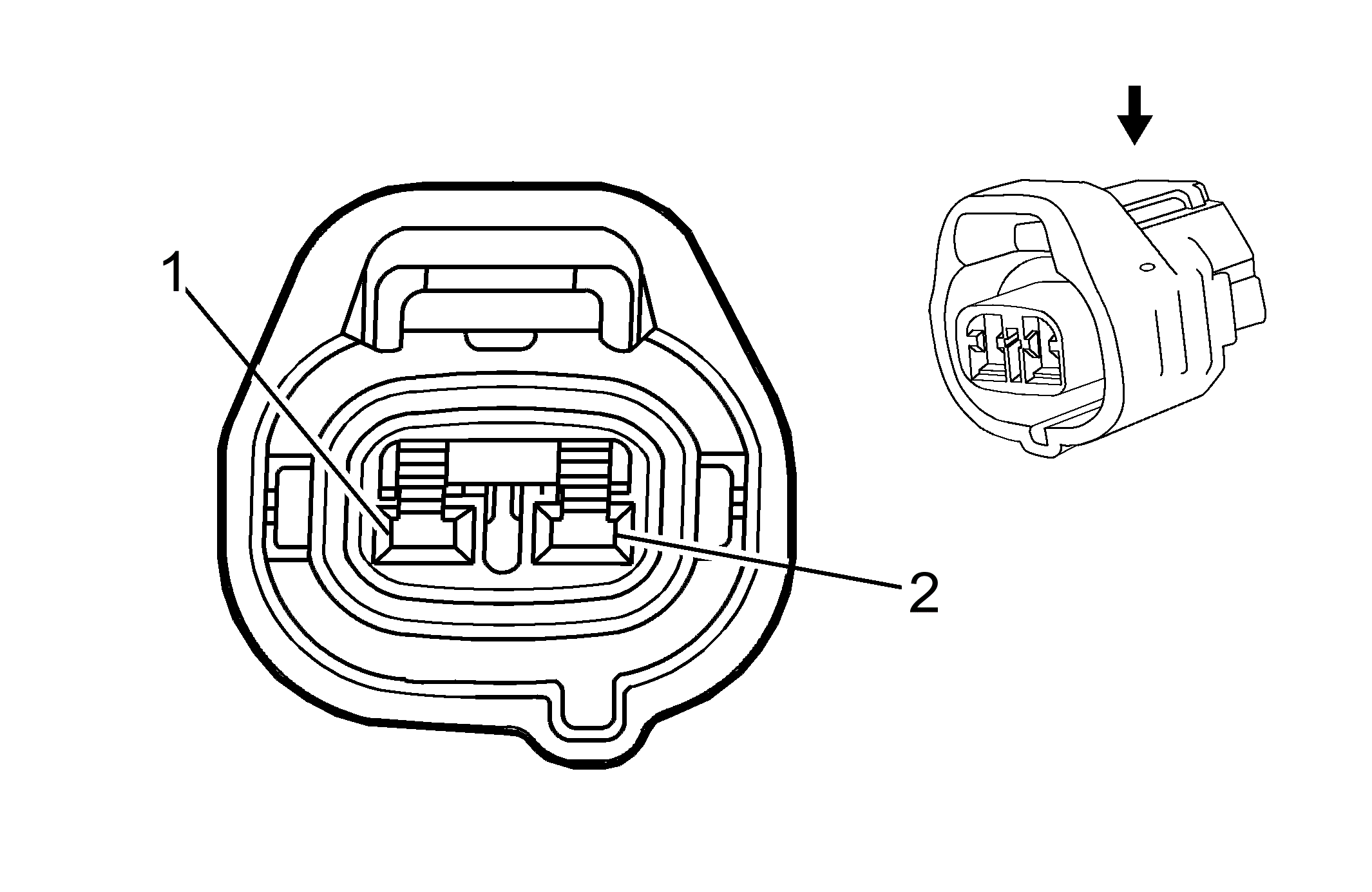

B14A Transmission Output Shaft Speed Sensor (MNG)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 6189-0251
- Service Connector: 19301823
- Description: 2-Way F 090 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-18 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/YE |
401 |
Vehicle Speed Sensor Low Reference |
I |
MNG |
| 2 |
0.5 |
YE |
400 |
Vehicle Speed Sensor Signal |
I |
MNG |
