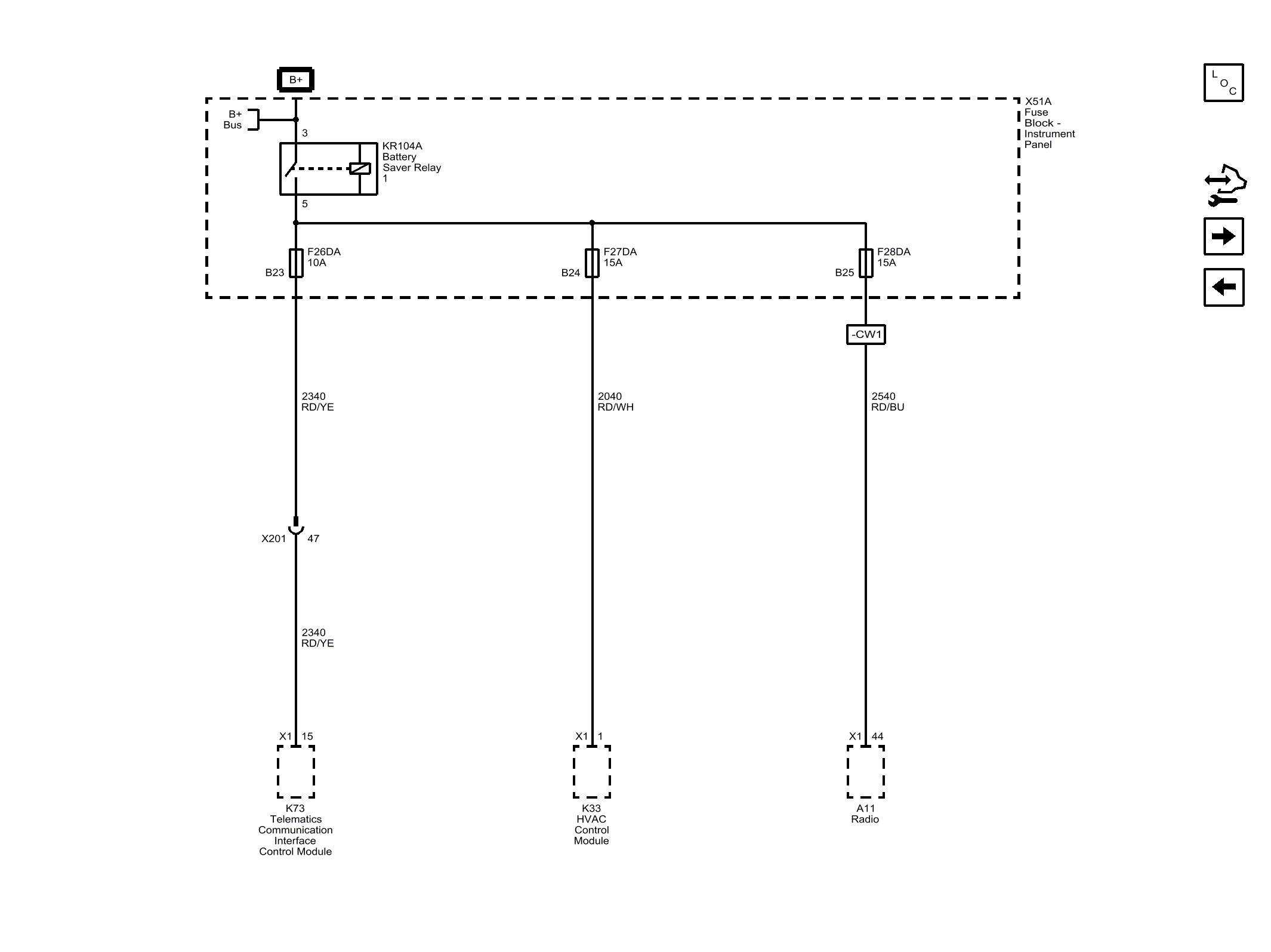

Home >> Chevrolet >> 2015 >> Spark LT, Standard Trans >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams >> Schematic Wiring Diagrams And Wiring Harness Routing Diagrams >> Power Distribution Wiring Schematics >> F26DA, F27DA and F28DA Fuses
