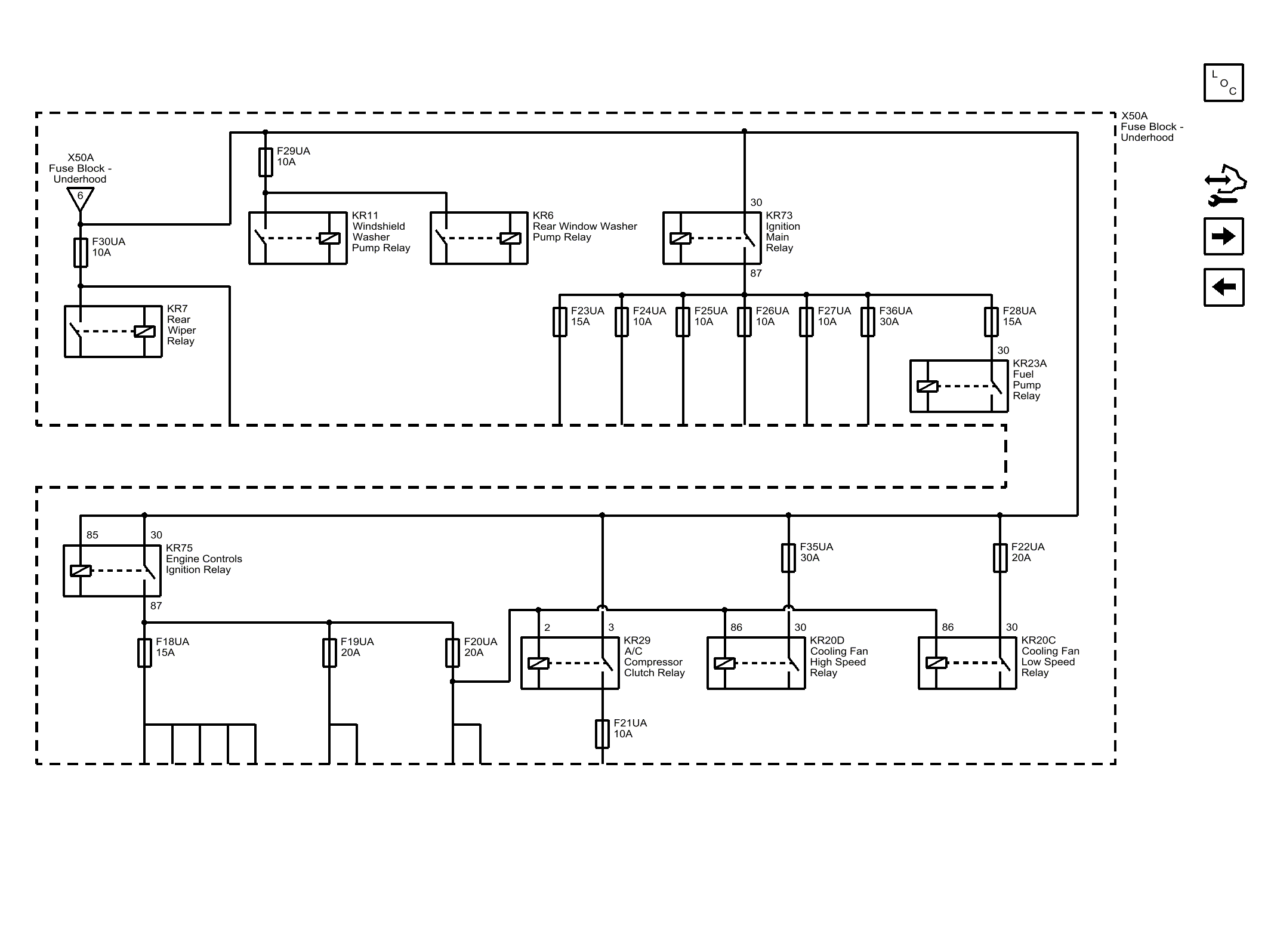

| 6_REF |
6 |
| F30UA |
F30UA 10A |
| F29UA |
F29UA 10A |
| F23UA |
F23UA 15A |
| F24UA |
F24UA 10A |
| F25UA |
F25UA 10A |
| F26UA |
F26UA 10A |
| F27UA |
F27UA 10A |
| F36UA |
F36UA 30A |
| F28UA |
F28UA 15A |
| F18UA |
F18UA 15A |
| F19UA |
F19UA 20A |
| F20UA |
F20UA 20A |
| F21UA |
F21UA 10A |
| F35UA |
F35UA 30A |
| F22UA |
F22UA 20A |
| X50A |
X50A Fuse Block - Underhood |
| KR7 |
KR7 Rear Wiper Relay |
| KR11 |
KR11 Windshield Washer Pump Relay |
| KR23A |
KR23A Fuel Pump Relay |
| KR29 |
KR29 A/C Compressor Clutch Relay |
| X50A |
X50A Fuse Block - Underhood |
| KR20C |
KR20C Cooling Fan Low Speed Relay |
| KR20D |
KR20D Cooling Fan High Speed Relay |
| KR6 |
KR6 Rear Window Washer Pump Relay |
| KR75 |
KR75 Engine Controls Ignition Relay |
| KR73 |
KR73 Ignition Main Relay |
