Rear Seat Belt Retractor Replacement

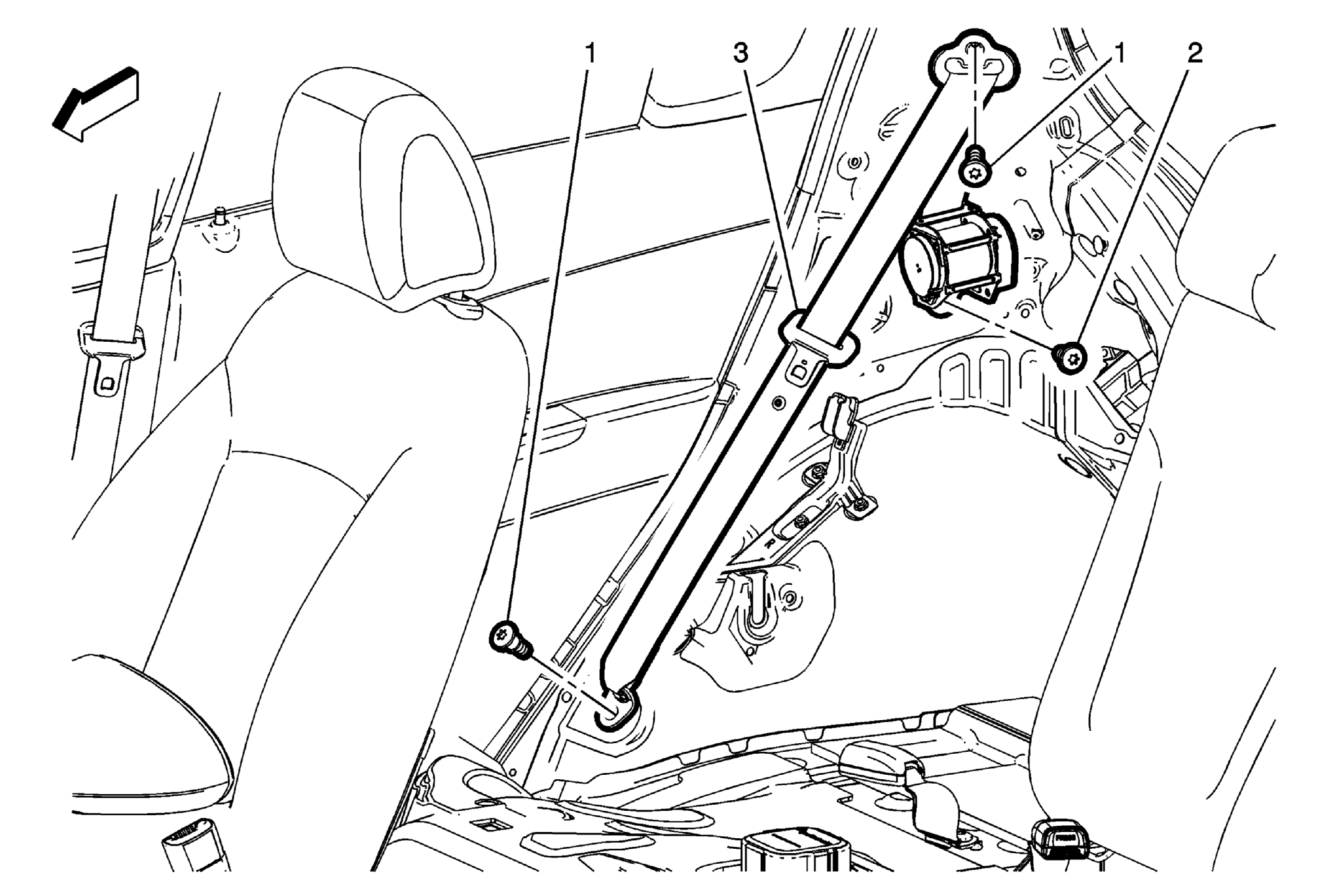

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement . Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
1	Rear Seat Belt Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 40 N.m (30 lb ft)
2	Rear Seat Belt Retractor Bolt Tighten 40 N.m (30 lb ft)
3	Rear Seat Belt Retractor Assembly
