X358 Body Harness to Battery Harness

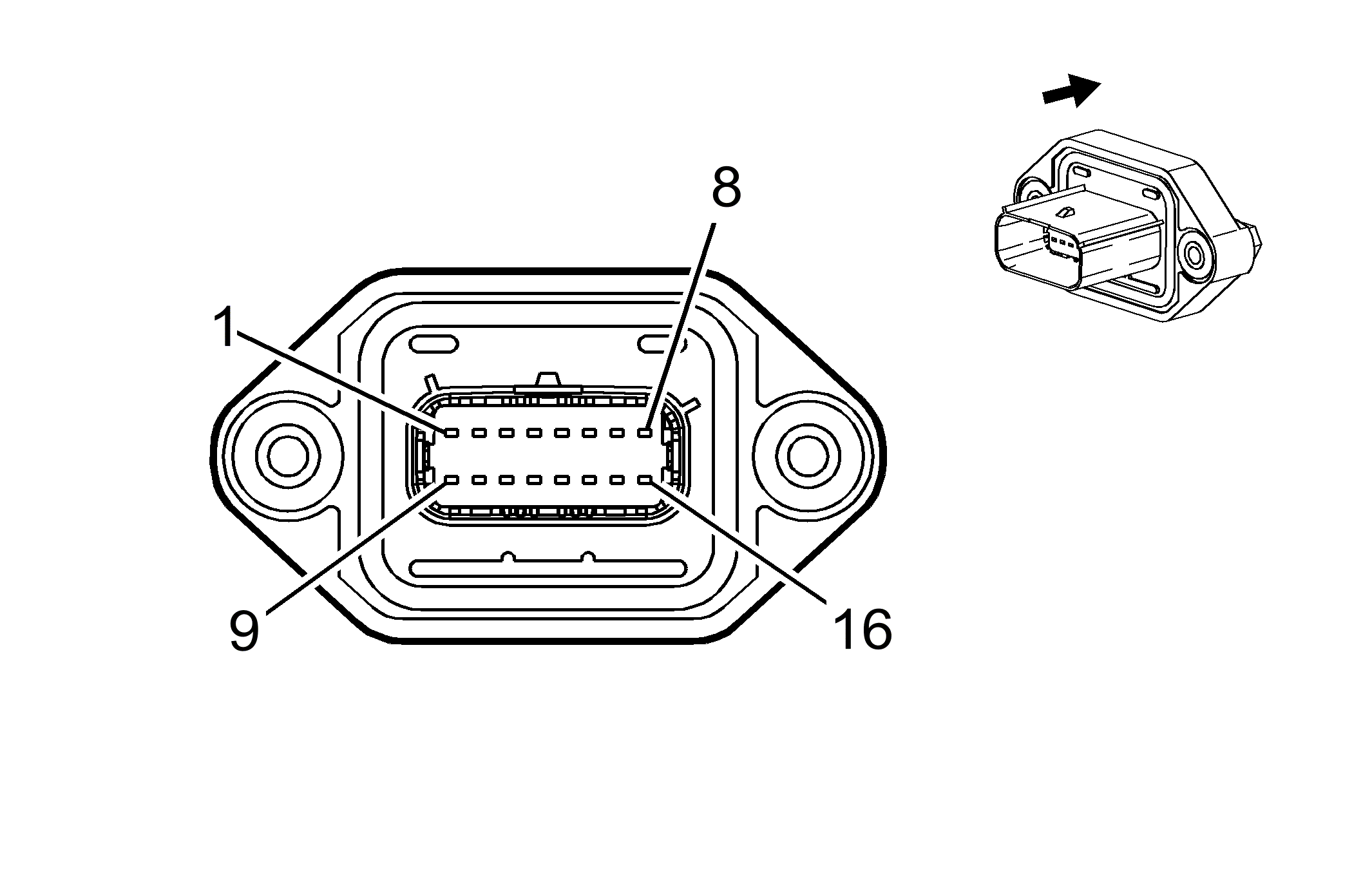

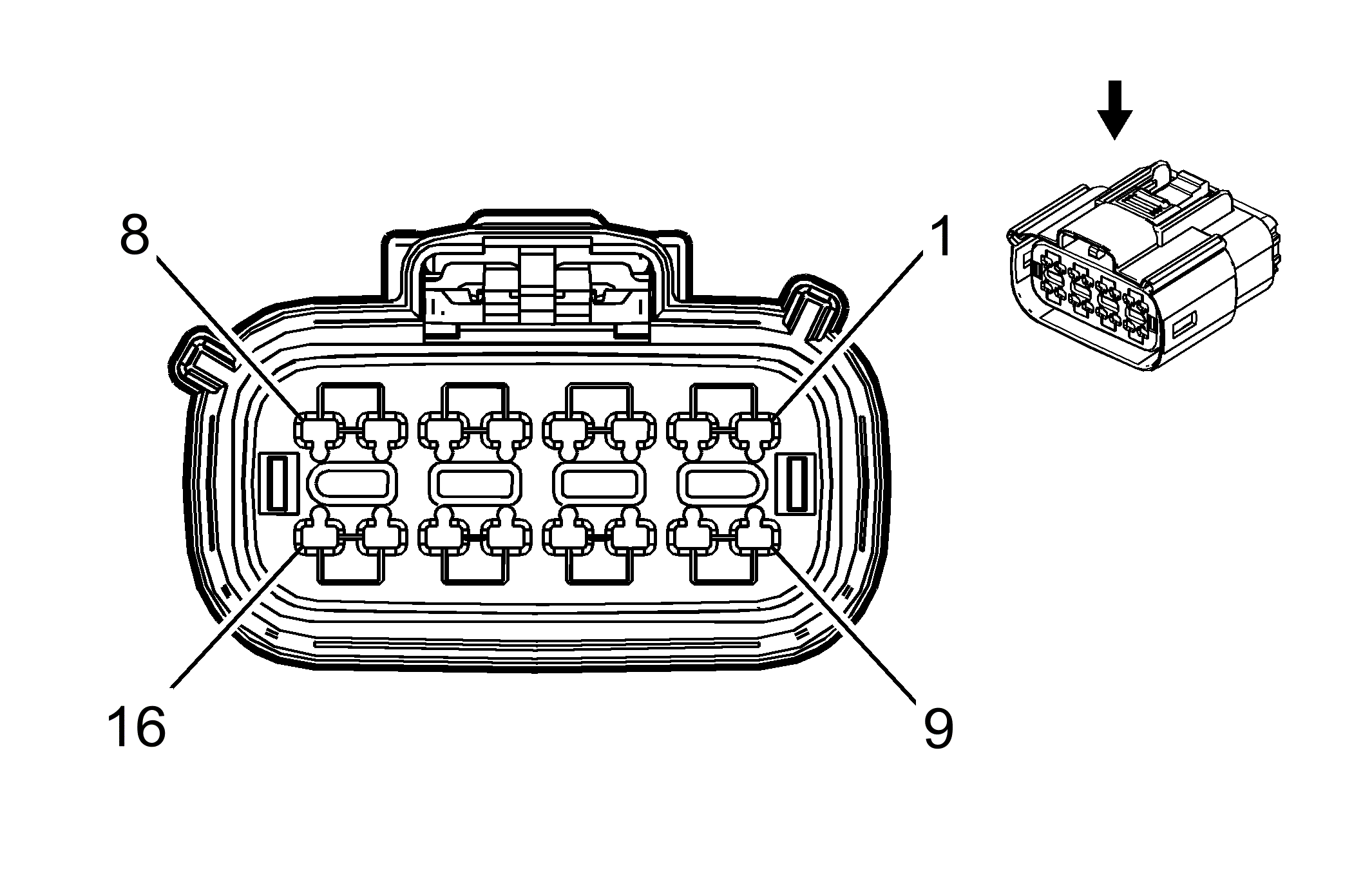

Connector Part Information Harness Type: Body OEM Connector: 54241631 Service Connector: 19301383 Description: 16-Way F 1.5 Series (GY)	Connector Part Information Harness Type: Auxiliary Battery Cable OEM Connector: 13839320 Service Connector: Service by Harness Assembly- See Part Catalog Description: 16-Way M 1.5 Series, Sealed (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13579989	J-35616-2A (GY)	J-38125-560	Not Available	Not Available	Not Available	Not Available
II	Not Available	J-35616-3 (GY)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	BK/BN	5088	I	-	High Voltage Interlock Loop Low Reference (1)	1	0.5	VT/WH	5087	II	-
2	0.5	VT	5087	I	-	High Voltage Interlock Loop Signal (1)	2	0.5	BK/BN	5088	II	-
3 - 4	-	-	-	-	-	Not Occupied	3 - 4	-	-	-	-	-
5	0.5	BK	2050	I	-	Ground	5	0.35	BK	150	II	-
6	-	-	-	-	-	Not Occupied	6	-	-	-	-	-
7	0.5	VT/GY	3961	I	-	High Voltage Battery (-) Relay Control	7	0.35	VT/GY	3961	II	-
8	0.5	GY/BU	3960	I	-	High Voltage Battery 2 (+) Relay Control	8	0.35	GY/D-BU	3960	II	-
9	0.5	WH/VT	5137	I	-	Precharge Relay PWM Signal	9	0.35	WH/VT	5137	II	-
10	0.5	BN/GN	3959	I	-	High Voltage Battery 1 (+) Relay Control	10	0.35	BN/L-GN	3959	II	-
11	0.5	WH/BN	3963	I	-	High Voltage Battery 3 (-) Relay Control	11	0.35	WH/BN	3963	II	-
12	0.5	YE/VT	3962	I	-	High Voltage Battery 3 (+) Relay Control	12	0.35	YE/VT	3962	II	-
13	-	-	-	-	-	Not Occupied	13	-	-	-	-	-
14	0.5	VT	3195	I	-	Auxiliary Heater Control	14	0.35	VT	3195	II	-
15 - 16	-	-	-	-	-	Not Occupied	15 - 16	-	-	-	-	-
