X200 Instrument Panel Harness to Body Harness

GM2537267

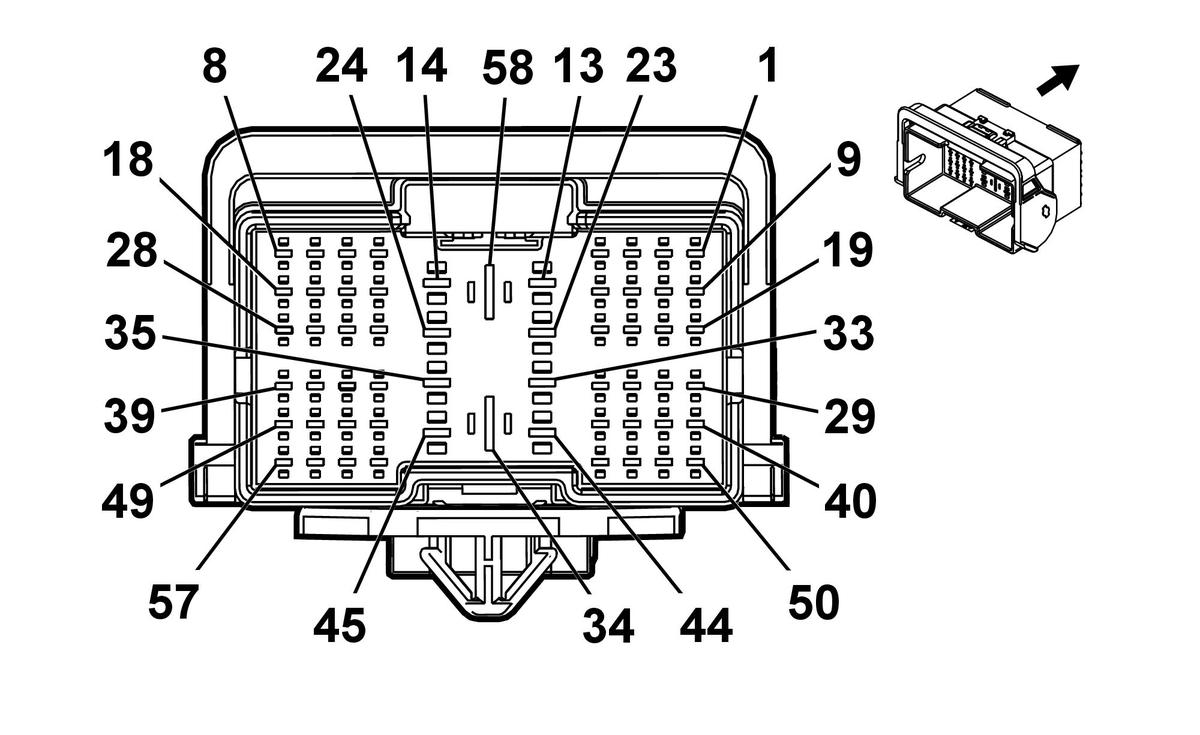

GM2913660
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 2005281-3
  • Service Connector: 13395410
  • Description: 58-Way F 1.6, 2.8, 4.8 Timer Series (GY)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 2109050-3
  • Service Connector: 19301391
  • Description: 58-Way M 1.6, 2.8, 5.8 Timer Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13575471 J-35616-14 (GN) J-38125-560 964274-2 3 E 1
II 13575471 J-35616-14 (GN) J-38125-560 964274-2 3 E 1
III 13575856 J-35616-4A (PU) J-38125-36 964280-2 22 E C
IV 13575471 J-35616-14 (GN) J-38125-560 964274-2 3 E 1
IX 13575574 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
V 13578858 J-35616-4A (PU) J-38125-36 Not Available Not Available Not Available Not Available
VI 13575858 J-35616-42 (RD) J-38125-36 927837-1 20 C A
VII 13578858 J-35616-4A (PU) J-38125-36 Not Available Not Available Not Available Not Available
VIII 13575574 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
X 13575593 J-35616-34 (YE) J-38125-560 964265-2 24 E 2
XI 13575593 J-35616-34 (YE) J-38125-560 964265-2 24 E 2
XII 13575593 J-35616-34 (YE) J-38125-560 964265-2 24 E C
XIII 13575857 J-35616-42 (RD) J-38125-36 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 GN/GY 3853 II - Cabin Heater Coolant Motor Control 1 0.5 GN/GY 3853 XI -
2 0.5 VT/YE 3854 II - Cabin Heater Coolant Motor Control 2 0.5 VT/YE 3854 XI -
3 0.5 BN/BU 3852 II - Cabin Heater Coolant Motor Feedback Signal 3 0.5 BN/BU 3852 XI -
4 - - - - - Not Occupied 4 - - - - -
5 0.35 BN/VT 193 II - Rear Defog Relay Control 5 0.35 BN/VT 193 XI -
6 0.5 VT/BK 7553 II - Park Lock Solenoid Control 6 0.5 VT/BK 7553 XI -
7 0.35 VT/BU 3263 I -CW1 Logistic Mode Relay Open Control 7 0.35 VT/BU 3263 XI -CW1
8 0.35 GY/VT 3264 I -CW1 Logistic Mode Relay Close Control 8 0.35 GY/VT 3264 XI -CW1
9 0.35 GY/GN 7565 I - Windscreen Temp Sensor Signal 9 0.35 GY/GN 7565 XI -
10 0.35 GY/BU 7564 I - Humidity Sensor Signal 10 0.35 GY/BU 7564 XI -
11 0.35 BK/BN 6102 I - Inside Air Temperature Sensor Low Reference 11 0.35 BK/BN 6102 XI -
12 0.35 YE/RD 597 I - 5 Volt Reference 12 0.35 YE/RD 597 XI -
13 0.5 YE/BN 3391 III - Driver Mirror Motor Common Control 13 0.5 WH 3398 VIII -
14 1 VT 2101 IV - Retained Accessory Power Fuse Ignition 14 1 VT 2101 VIII -
15 0.35 YE 6817 I - LED Backlight Dimming Control 15 0.35 YE 6817 XI -
16 0.35 BK/BN 5360 I - Brake Apply Sensor Low Reference 16 0.35 BK/BN 5360 X -
17 0.35 BU/YE 5361 I - Brake Apply Sensor Signal 17 0.35 BU/YE 5361 X -
18 0.35 WH 5359 I - Brake Apply Sensor Control 18 0.35 WH 5359 X -
19 0.5 BN/WH 419 I - Check Engine Indicator Control 19 0.5 BN/WH 419 XI -
20 0.35 YE/BU 3197 I - Humidity Temperature Sensor Signal 20 0.35 YE/BU 3197 X -
21 - - - - - Not Occupied 21 - - - - -
22 0.35 GY/VT 755 I - RAP Relay Coil Control 22 0.35 GY/VT 755 X -
23 1 RD/BU 2540 V - Battery Positive Voltage 23 1 RD/BU 2540 VIII -
24 0.5 BN/GY 1462 III C37/C38 Heated Seat Switch Signal 24 0.5 BN/GY 1462 VIII C38
25 0.5 BU/YE 6105 II - High Speed GMLAN Serial Data (+) (2) 25 0.5 BU/YE 6105 XI -
26 0.5 WH 6106 II - High Speed GMLAN Serial Data (-) (2) 26 0.5 WH 6106 XI -
27 0.35 BU 655 I -UE1 Cellular Telephone Microphone Signal 27 0.35 BU 655 X -UE1
28 0.35 BK/BN 654 I -UE1 Cellular Telephone Microphone Low Reference 28 0.35 BK/BN 654 X -UE1
29 0.35 BK/WH 651 I UVC Signal Ground 29 0.35 BK/WH 651 XI UVC
30 0.35 GY/YE 6972 I UVC Camera Signal 2 + 30 0.35 GY/YE 6972 XI UVC
31 0.35 WH/BU 6973 I UVC Camera Signal 2 31 0.35 WH/BU 6973 XI UVC
32 0.35 BN/VT 5486 I - Run Relay Coil Control 32 0.35 BN/VT 5486 XI -
33 1 RD/VT 2640 V - Battery Positive Voltage 33 1 RD/VT 2640 VIII -
34 - - - - - Not Occupied 34 - - - - -
35 2 RD/WH 140 VII - Battery Positive Voltage 35 2 RD/WH 140 IX -
36 - 37 - - - - - Not Occupied 36 - 37 - - - - -
38 0.75 GN 199 II - Left Rear Speaker Control (+) 38 0.75 GN 199 XII -
39 0.75 GN/BK 116 II - Left Rear Speaker Signal (-) 39 0.75 GN/BK 116 XII -
40 0.35 YE/VT 3956 I - Charging Status Indicator Control 40 0.35 YE/VT 3956 X -
41 0.35 GY/GN 3957 I - Charging Pilot Signal Indicator Control 41 0.35 GY/GN 3957 X -
42 0.35 BK/GN 3958 I - Charging Indicator Low Reference 42 0.35 BK/GN 3958 X -
43 0.35 WH/VT 5905 I - Key Capture/Column Lock Shift Position Signal 43 0.35 WH/VT 5905 X BTM
44 1.5 VT 1301 VII - Retained Accessory Power Fuse Control 44 1.5 VT 1301 IX AE3
45 1.5 VT 1701 VII - Retained Accessory Power Ignition 45 1.5 VT 1701 IX AE3
46 - - - - - Not Occupied 46 - - - - -
47 0.5 VT/BN 141 II - Run Ignition 3 Voltage 47 0.5 VT/BN 141 XI UD7
48 0.35 GY/WH 3272 I - Remote Function Actuator Control 48 0.35 GY 3273 X -
49 0.35 BU/WH 3275 I - Remote Function Actuator Receive Signal 49 0.35 YE/GN 3274 X -
50 0.35 YE/GN 3274 I - Remote Function Actuator Transmit Signal 50 0.35 BU/WH 3275 X -
51 0.35 GY 3273 I - Remote Function Actuator Low Reference 51 0.35 GY/WH 3272 X -
52 0.35 GN/WH 2270 I CD6 Rear Window Washer Relay Control 52 0.35 GN/WH 2270 X CD6
53 - - - - - Not Occupied 53 - - - - -
54 0.5 VT/BU 3390 II - Driver Mirror Motor Up (+) Down (-) Control 54 0.5 VT/BU 3390 XI (DLS/D71)
55 0.5 BN/BK 3389 II - Driver Mirror Motor Right (+) Left (-) Control 55 0.5 BN/BK 3389 XI (DLS/D71)
56 - 57 - - - - - Not Occupied 56 - 57 - - - - -
58 2 VT/GN 39 VI - Run/Crank Ignition 1 Voltage 58 2 VT/GN 39 XIII -
