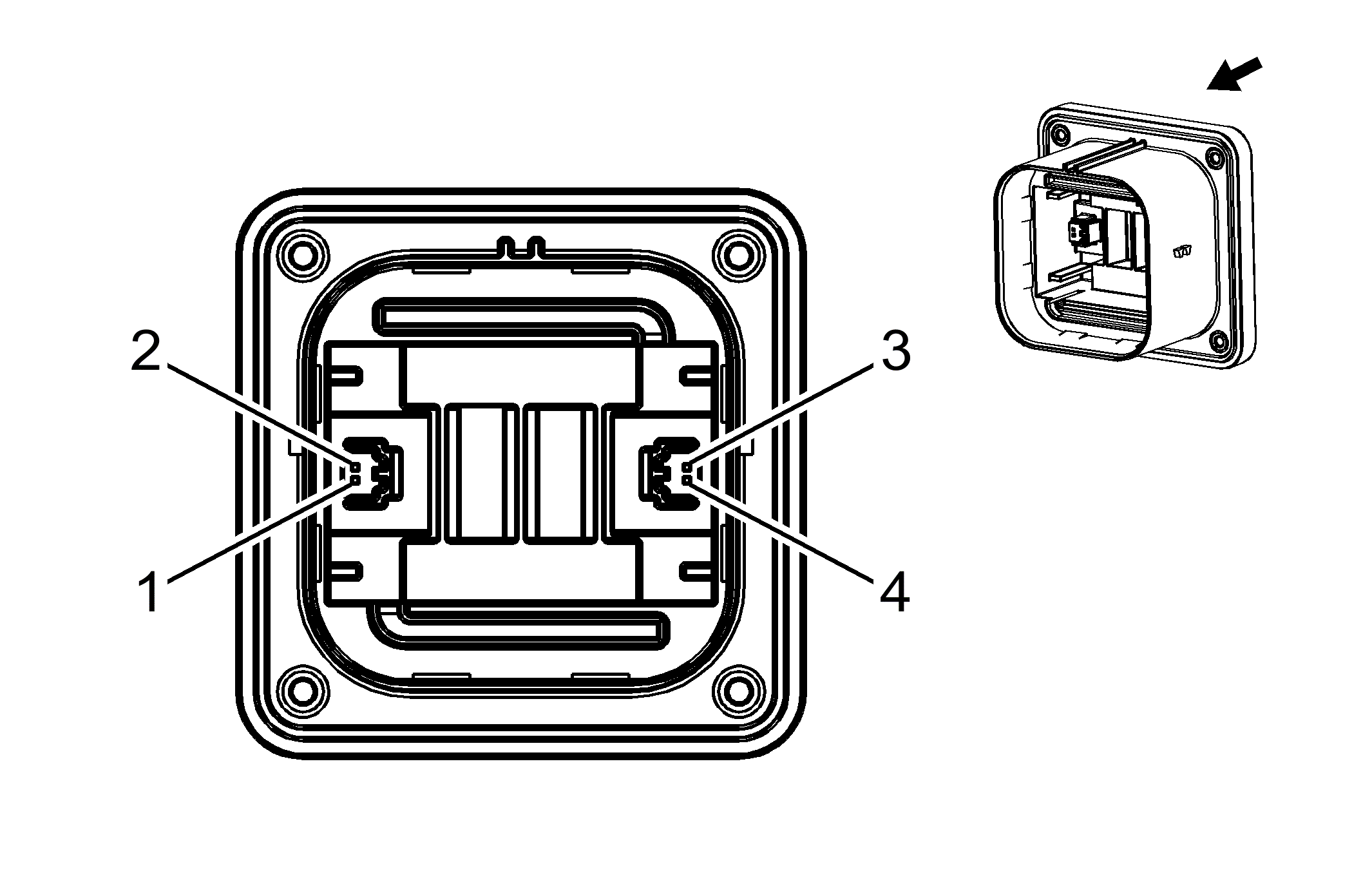

X21 Manual Service Disconnect Receptacle X5
|
|
Connector Part Information
- Harness Type: Manual Service Disconnect Receptacle
- OEM Connector: 1-1587987-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F Receptacle Assembly (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
High Voltage Interlock Loop Low Reference (1) |
I |
- |
| 2 |
- |
- |
- |
High Voltage Interlock Loop Signal (1) |
I |
- |
| 3-4 |
- |
- |
- |
Not Occupied |
- |
- |
