T6 Power Inverter Module X3
|
|

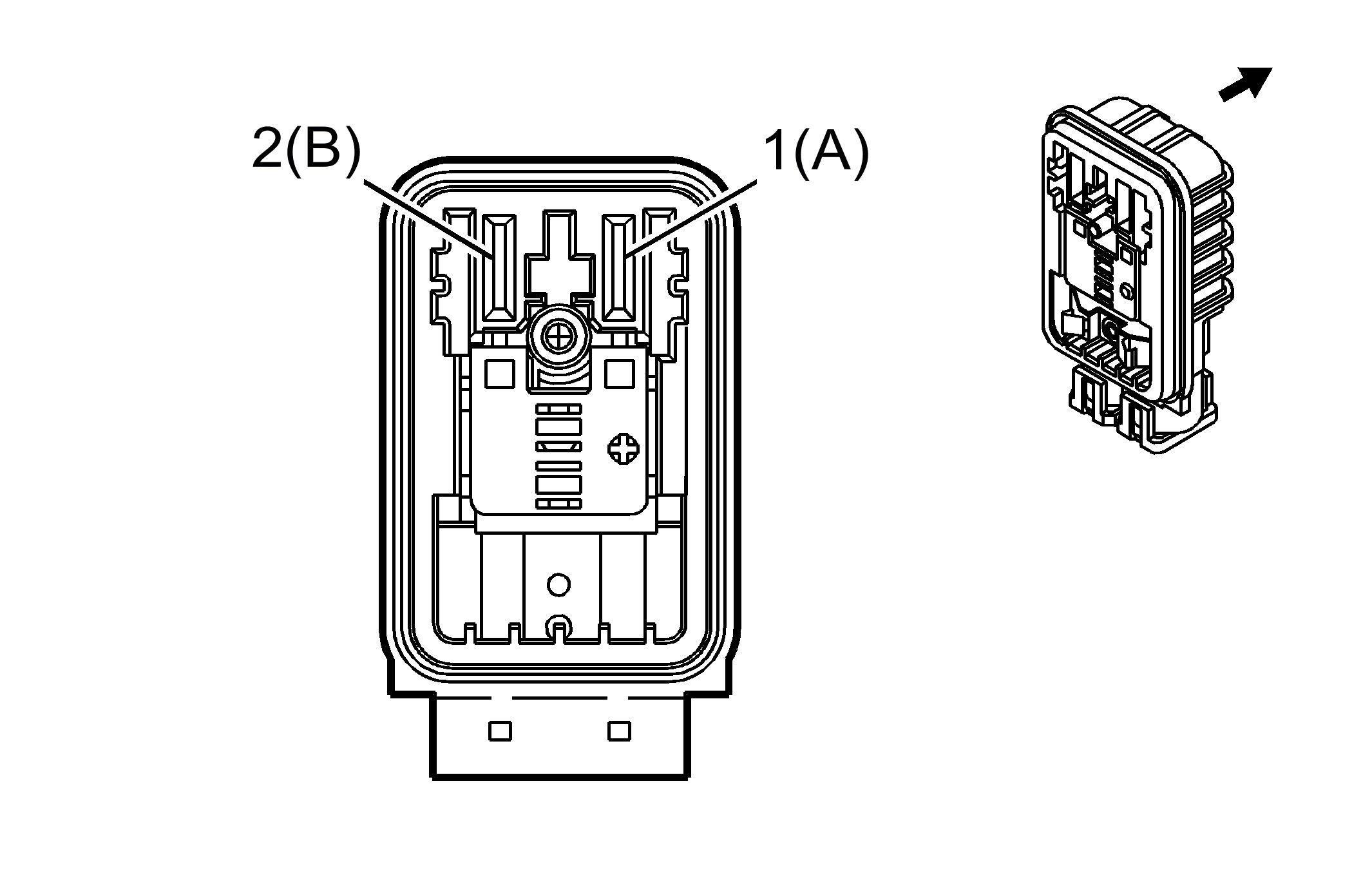

Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 13933818
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 2-Way F High Voltage Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
35 |
OG |
3965 |
High Voltage Battery 3 (-) |
I |
- |
| B |
35 |
OG |
3966 |
High Voltage Battery 3 (+) |
I |
- |
