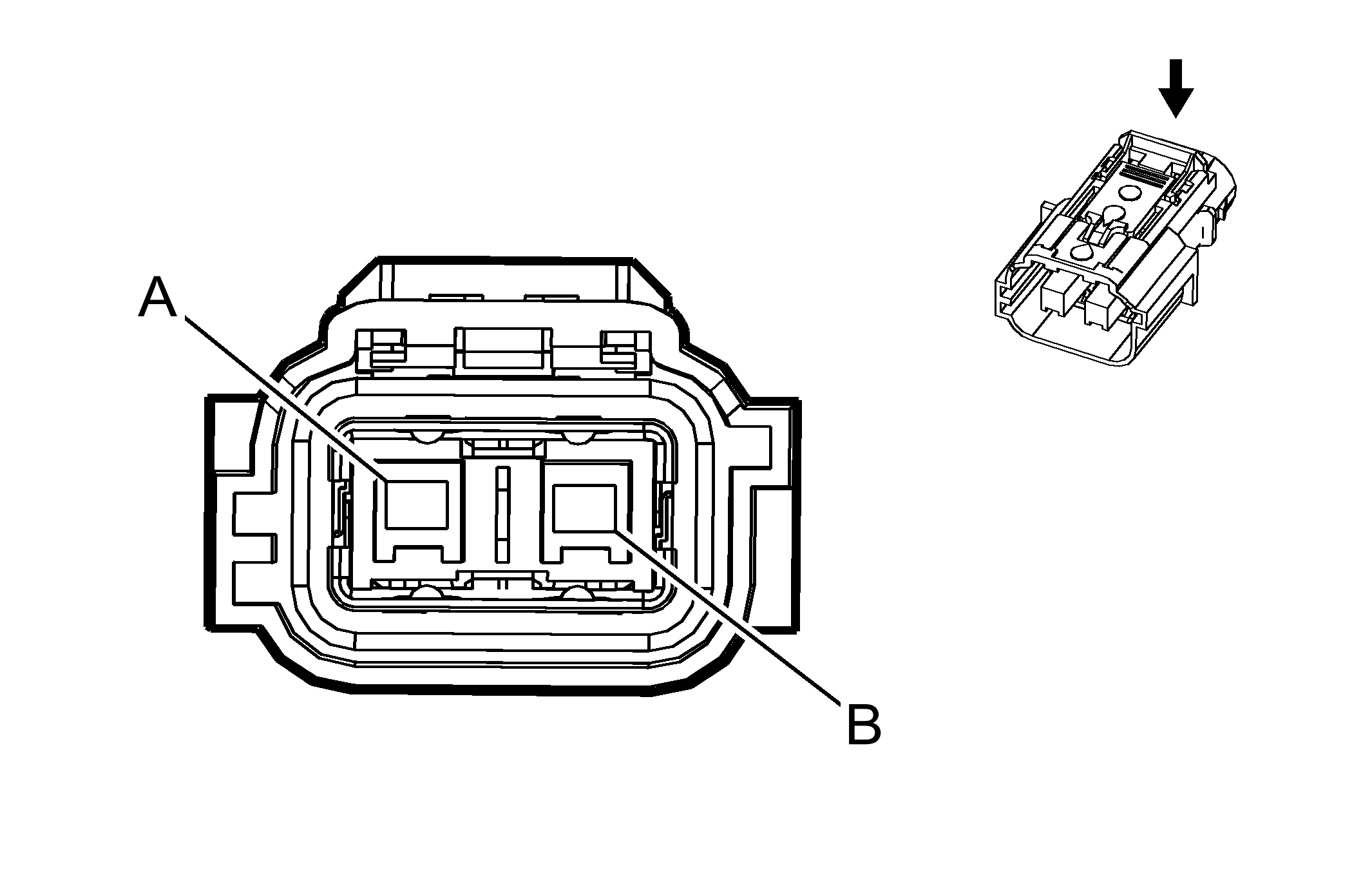

T24 Battery Charger - DC X5
|
|
Connector Part Information
- Harness Type: High Voltage
- OEM Connector: 13830160
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 2-Way F 280 Metri-Pack Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
5 |
OG |
3974 |
High Voltage Battery 5 (+) |
I |
- |
| B |
5 |
OG |
3973 |
High Voltage Battery 5 (-) |
I |
- |
