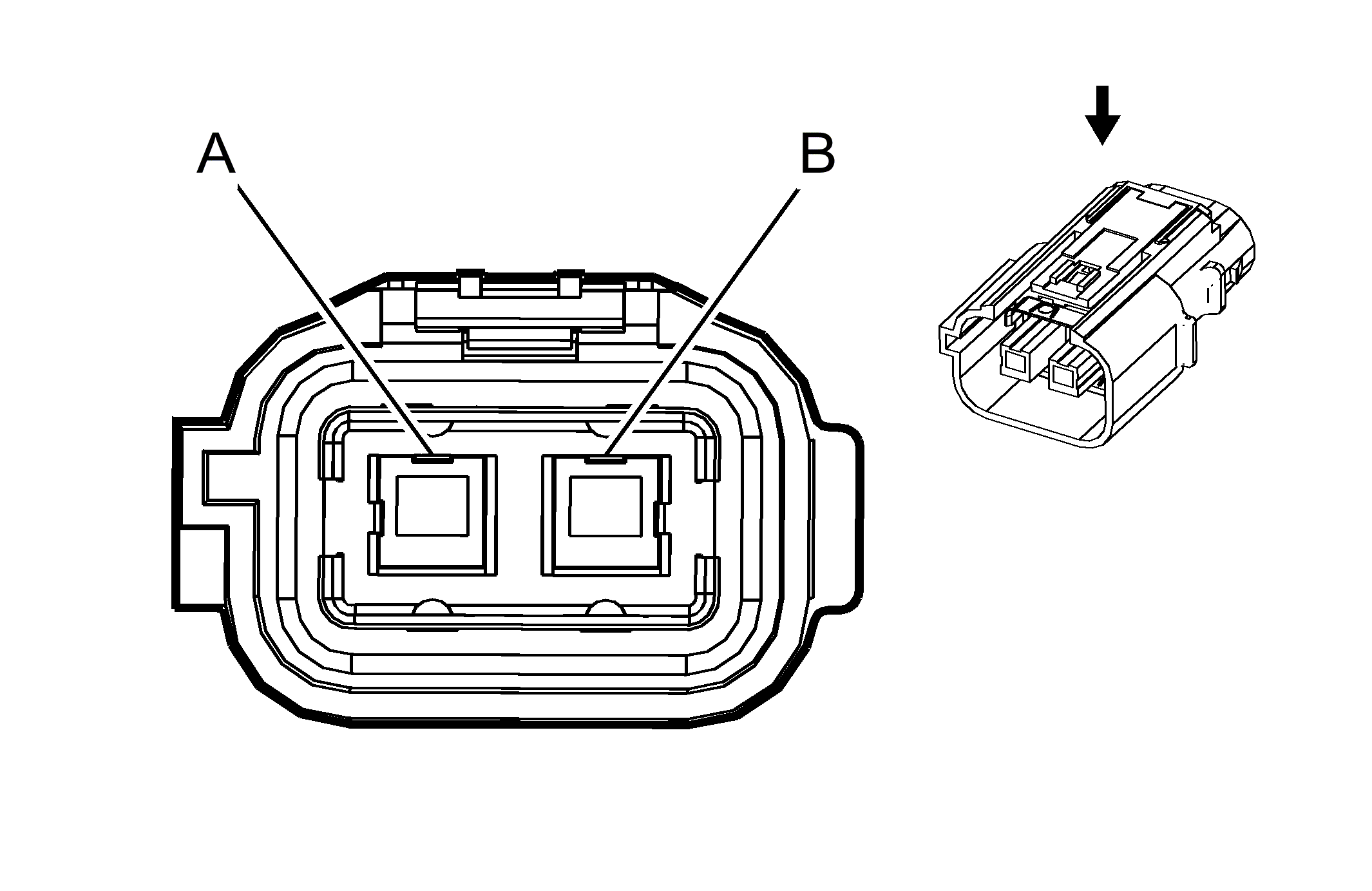

T18 Battery Charger X4
|
|
Connector Part Information
- Harness Type: High Voltage
- OEM Connector: 13861585
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Service by Harness - See Part Catalog |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2 |
OG |
3834 |
High Voltage Battery (+) |
I |
- |
| B |
2 |
OG/BK |
5083 |
High Voltage Battery (-) |
I |
- |
