K159 Hybrid/EV Battery Pack Coolant Heater Module X1
|
|

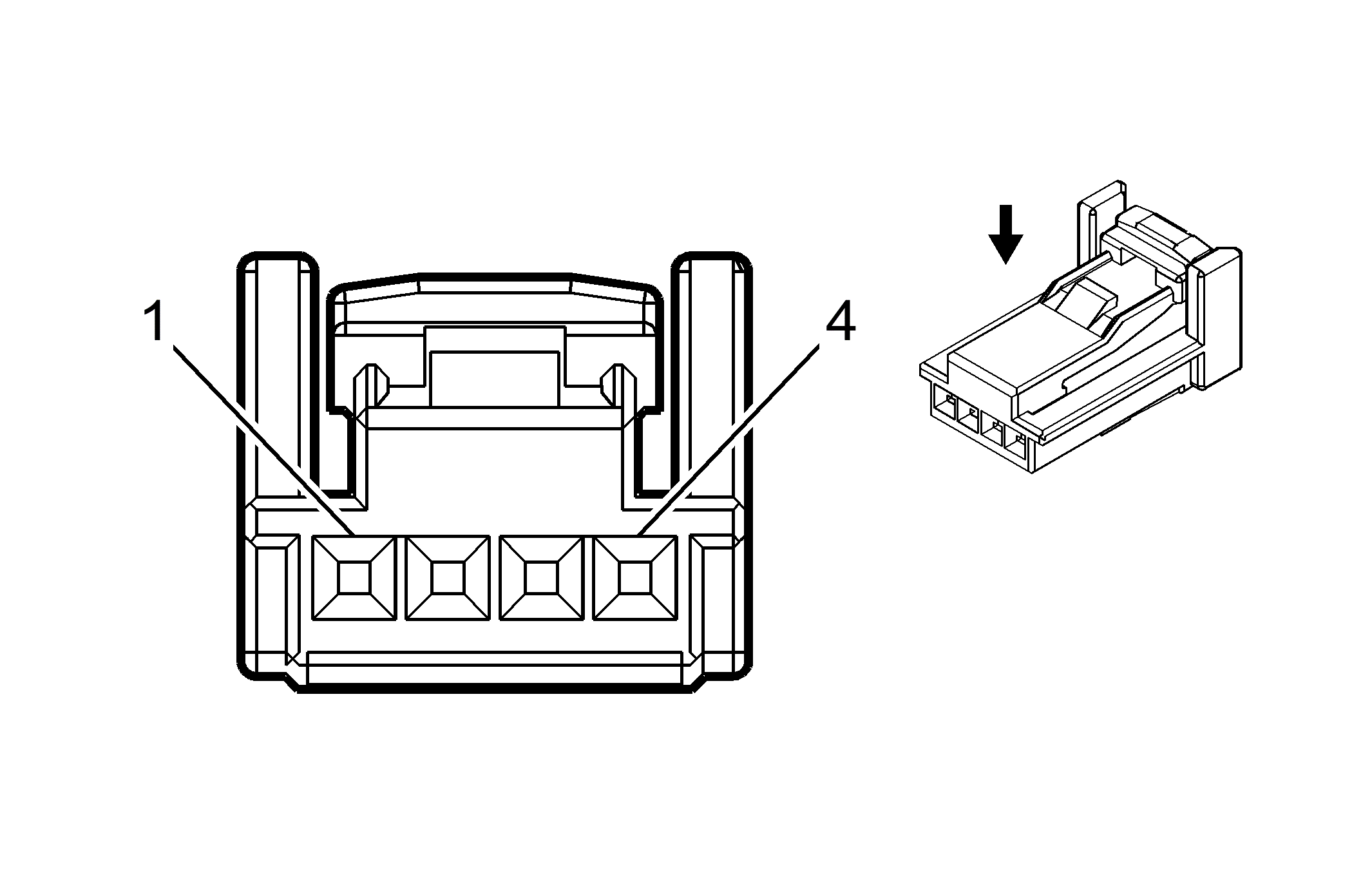

Connector Part Information
- Harness Type: Low Voltage
- OEM Connector: 1379658-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 025 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
2050 |
Ground |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
YE |
3185 |
Heater Control |
I |
- |
| 4 |
0.5 |
RD/VT |
1640 |
Battery Positive Voltage |
I |
- |
