A4 Hybrid/EV Battery Pack X2
|
|

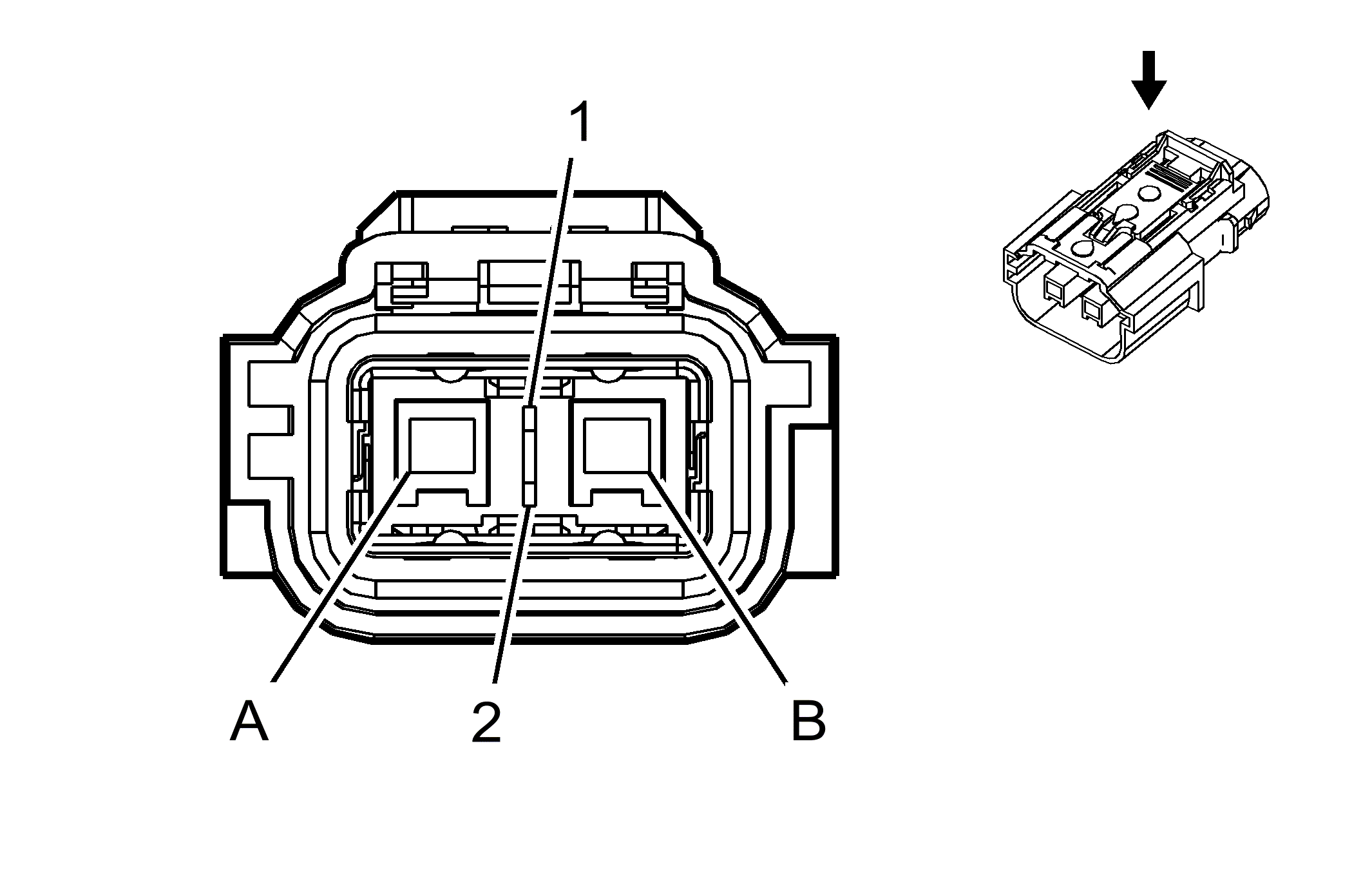

Connector Part Information
- Harness Type: High Voltage
- OEM Connector: 13830159
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (L-BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
5087 |
High Voltage Interlock Loop Signal (1) |
I |
- |
| 2 |
- |
- |
5087 |
High Voltage Interlock Loop Signal (1) |
I |
- |
| A |
2 |
OG |
3834 |
High Voltage Battery (+) |
II |
- |
| B |
2 |
OG/BK |
3833 |
High Voltage Battery (-) |
II |
- |
