Right Front of Passenger Compartment Harness Routing

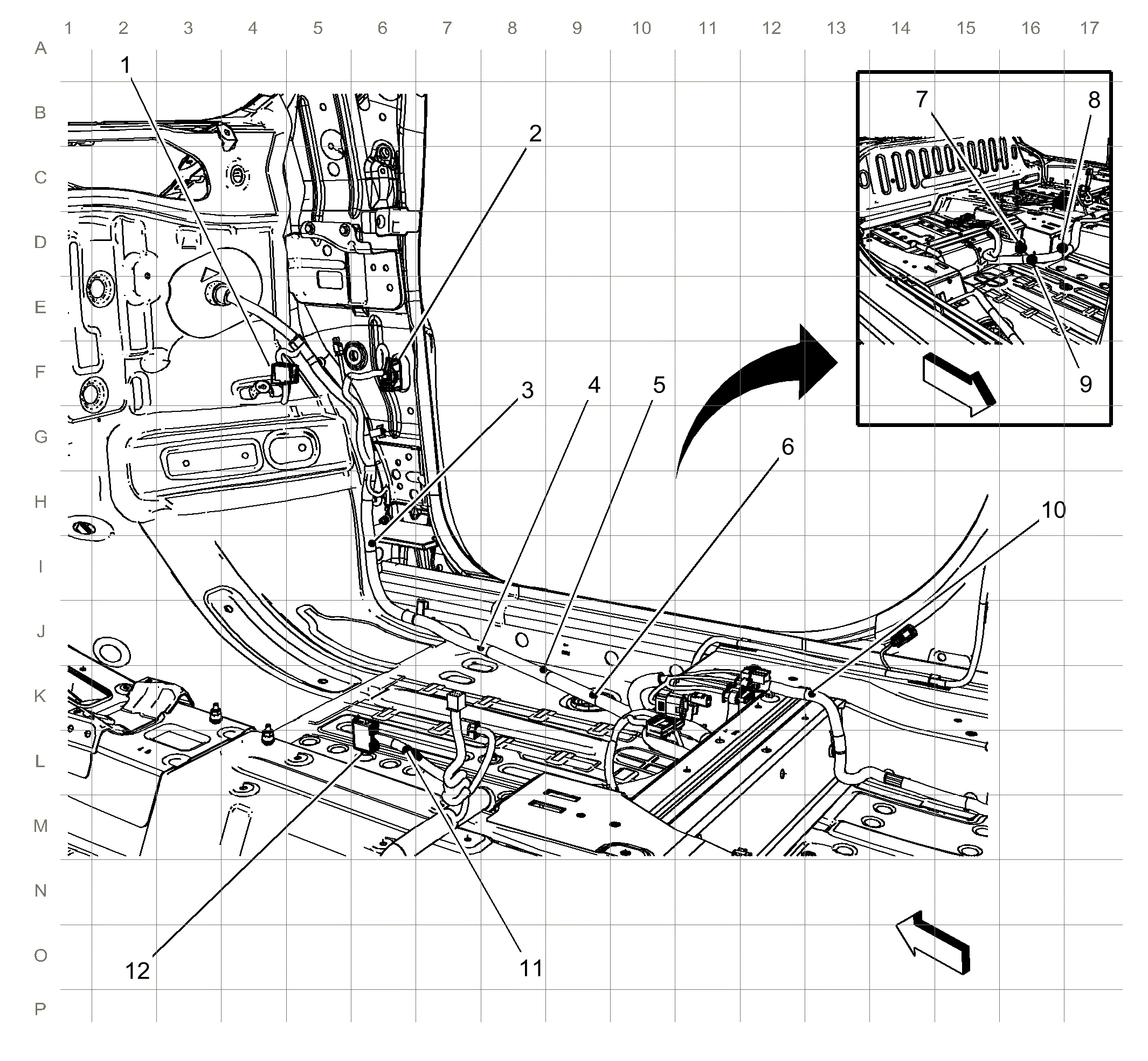

Fig 1: Right Front of Passenger Compartment Harness Routing

Courtesy of GENERAL MOTORS COMPANY

Items
1:X210 X210 Body Harness to Instrument Panel Harness
2:X600 X600 Body Harness to Passenger Door Harness
3:J235
4:J305
5:J306
6:J307
7:J308
8:J311
9:J310
10:J314
11:J309
12:X310 X310 Body Harness to Instrument Panel Harness
