Left Front of Engine Compartment Harness Routing

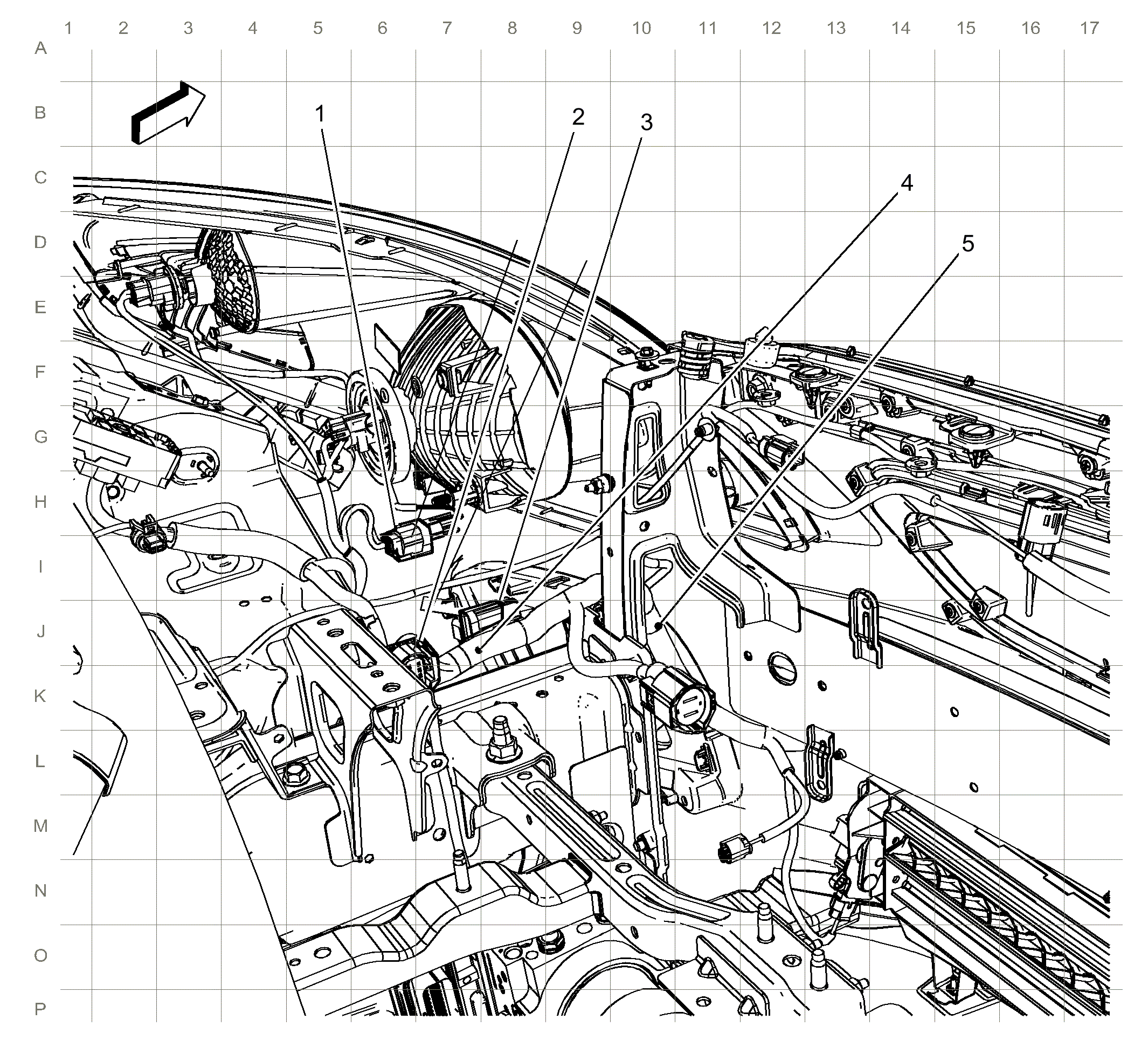

Fig 1: Left Front of Engine Compartment Harness Routing
GM3212800Courtesy of GENERAL MOTORS COMPANY
Items
1:X110 X110 Forward Lamp Harness to Left Headlamp Harness
2:X116 X116 Forward Lamp Harness to Engine Harness
3:X117 X117 Battery Charger Receptacle Harness to Forward Lamp Harness
4:J108
5:J109
