Front of Drive Motor Harness Routing View

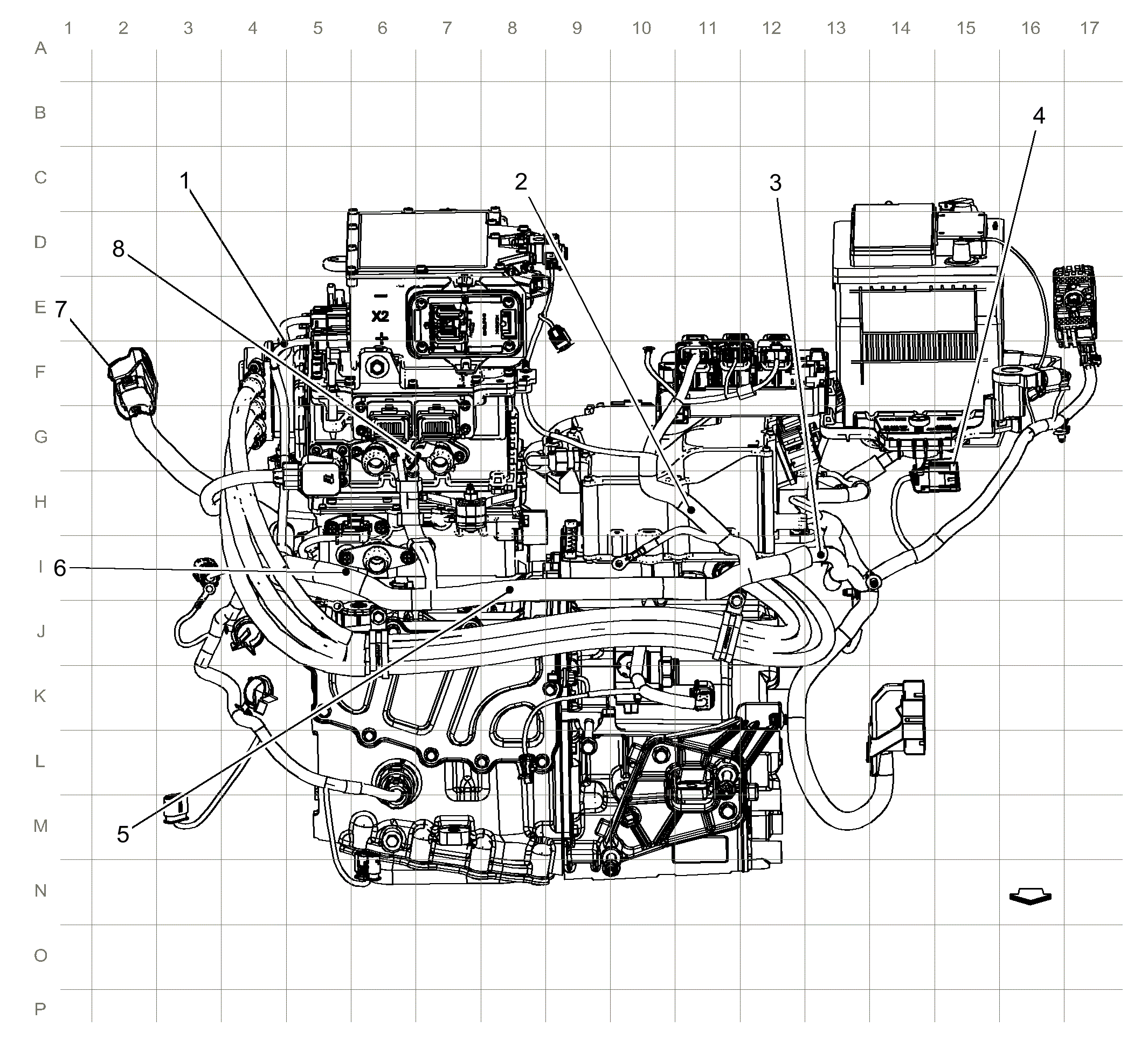

Fig 1: Front of Drive Motor Harness Routing View
GM3212803Courtesy of GENERAL MOTORS COMPANY
Items
1:J102
2:J106
3:J107
4:X117 X117 Battery Charger Receptacle Harness to Forward Lamp Harness
5:J105
6:J103
7:X115 X115 Engine Harness to Body Harness
8:J104
