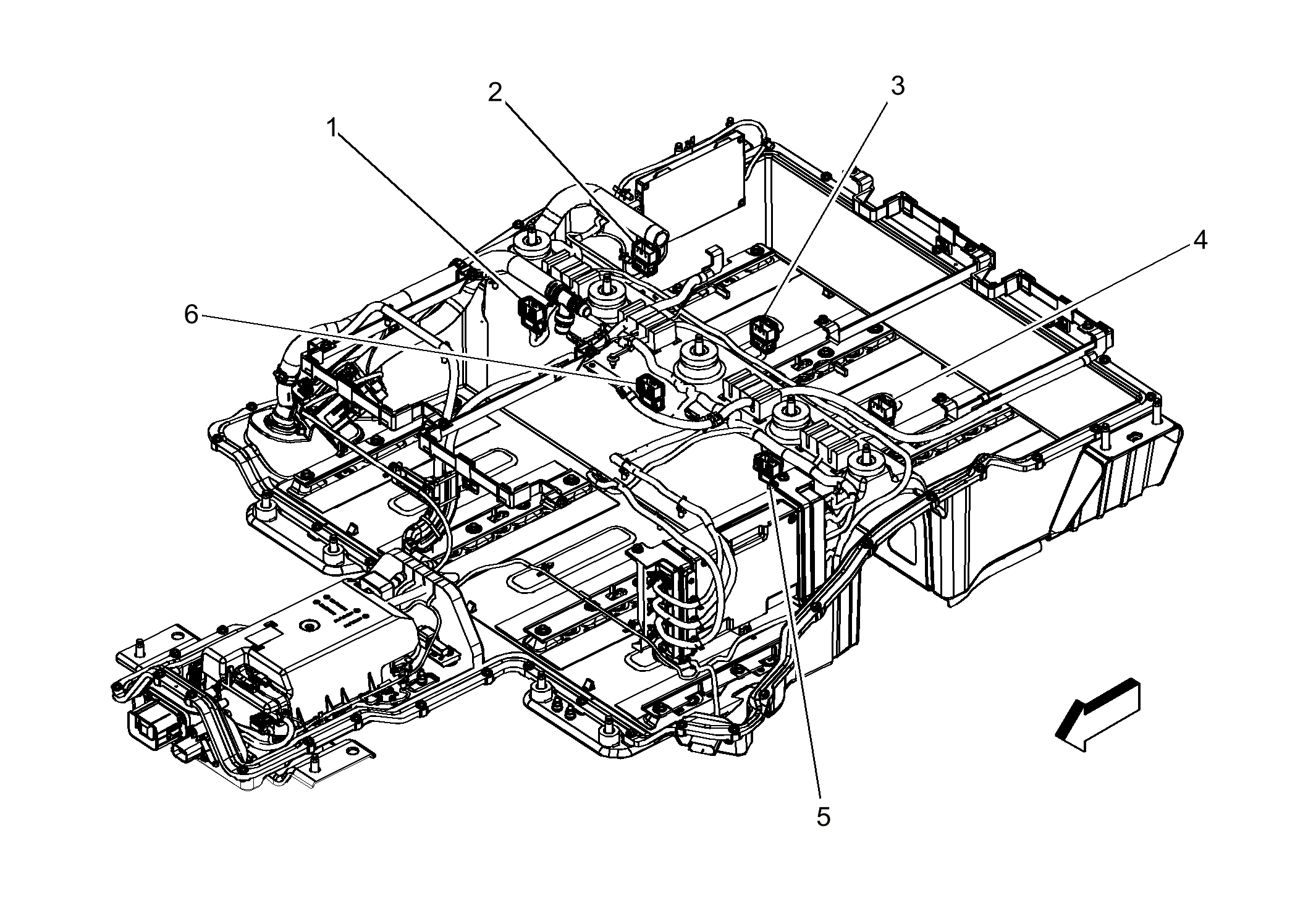

Underbody - Hybrid/EV Battery Pack Components (3 of 3)
Underbody - Hybrid/EV Battery Pack Components (3 of 3)
| Items |
|---|
| 1: C4A Hybrid/EV Battery Section 1 C4A Hybrid Battery Section 1 |
| C4F C4F Hybrid/EV Battery Section 6 |
| C4E C4E Hybrid/EV Battery Section 5 |
| C4D C4D Hybrid/EV Battery Section 4 |
| 5: C4C Hybrid/EV Battery Section 3 C4C Hybrid Battery Section 3 |
| 6: C4B Hybrid/EV Battery Section 2 C4B Hybrid Battery Section 2 |
