Underbody - Hybrid/EV Battery Pack Components (2 of 3)

Items
1: B204B Hybrid/EV Battery Pack Coolant Temperature Sensor 2 B204B Hybrid/EV Battery Pack Coolant Temperature Sensor 2
2: X21 Manual Service Disconnect Receptacle X21 Manual Service Disconnect Receptacle X3
3: B32A Hybrid/EV Battery Temperature Sensor 1 B32A Hybrid/EV Battery Temperature Sensor 1
4: B32F Hybrid/EV Battery Temperature Sensor 6 B32F Hybrid/EV Battery Temperature Sensor 6
5: K112 K112 Hybrid/EV Battery Interface Control Module X13 X13 K112 Hybrid/EV Battery Interface Control Module K112 Hybrid/EV Battery Interface Control Module X36 X36
6: B32E Hybrid/EV Battery Temperature Sensor 5 B32E Hybrid/EV Battery Temperature Sensor 5
7: B32B Hybrid/EV Battery Temperature Sensor 2 B32B Hybrid/EV Battery Temperature Sensor 2
8: B32D Hybrid/EV Battery Temperature Sensor 4 B32D Hybrid/EV Battery Temperature Sensor 4
9: B32C Hybrid/EV Battery Temperature Sensor 3 B32C Hybrid/EV Battery Temperature Sensor 3
10: K16 Battery Energy Control Module K16 Battery Energy Control Module X10 X10 K16 Battery Energy Control Module X11 K16 Battery Energy Control Module X12 K16 Battery Energy Control Module X3 X3 K16 Battery Energy Control Module X6 X6 K16 Battery Energy Control Module X7 X7 K16 Battery Energy Control Module X8 X8 K16 Battery Energy Control Module X9 X9
11: R35 Manual Service Disconnect Resistor R35 Manual Service Disconnect Resistor
12: B30 Hybrid/EV Battery Pack Current Sensor B30 Hybrid/EV Battery Pack Current Sensor
13: E54 Hybrid/EV Battery Pack Coolant Heater
14: B204A Hybrid/EV Battery Pack Coolant Temperature Sensor 1 B204A Hybrid/EV Battery Pack Coolant Temperature Sensor 1

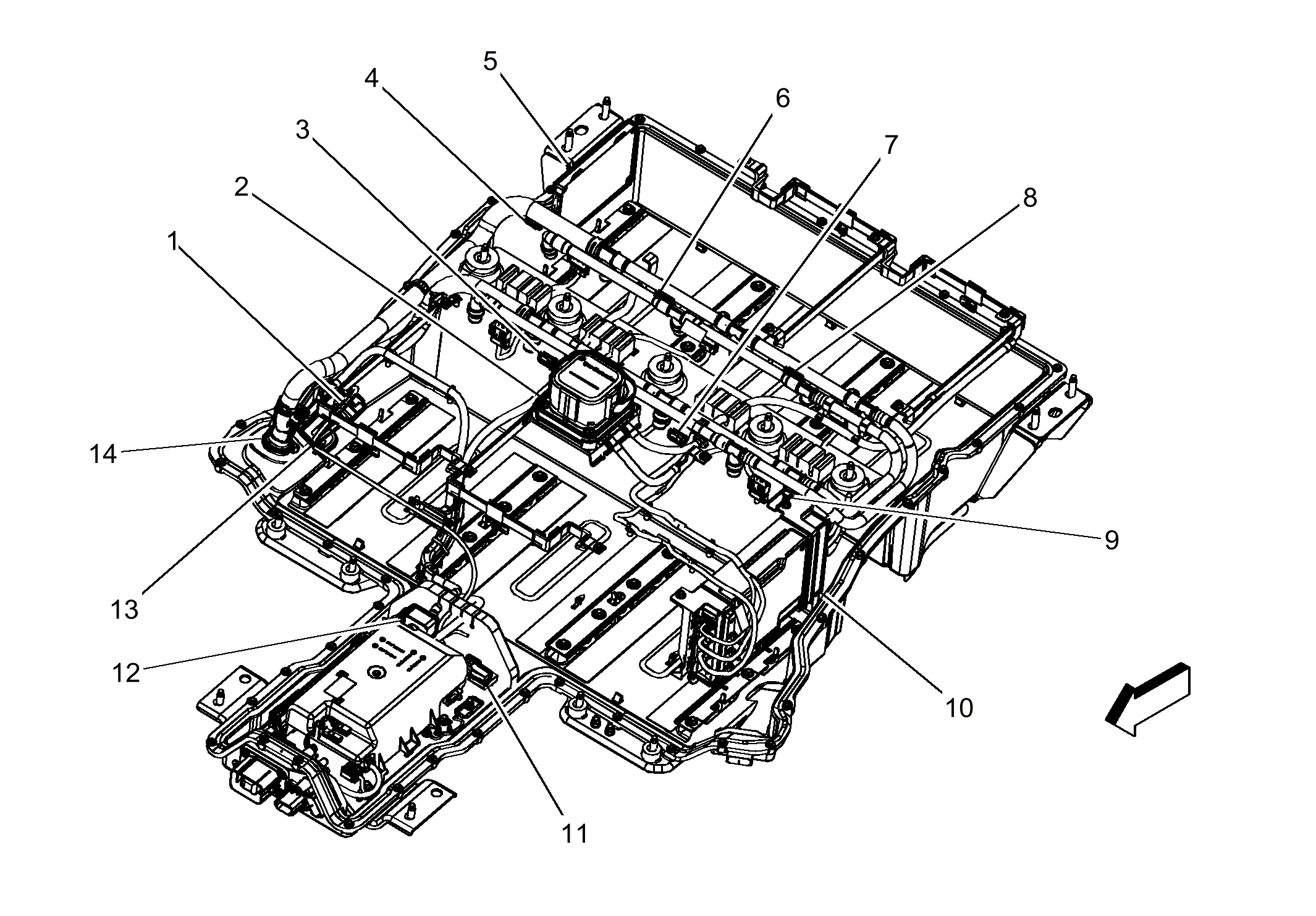

Fig 1: Underbody - Hybrid/EV Battery Pack Components (2 Of 3)

Courtesy of GENERAL MOTORS COMPANY
