Left Front of Passenger Compartment Components

Left Front of Passenger Compartment Components

Items
1: F105L Roof Rail Air Bag - Left (AYF/AW7) F105L Roof Rail Air Bag - Left
2: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
3: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
4: B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor
5: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
6: K132 Pedestrian Alert Sound Control Module K132 Pedestrian Alert Sound Control Module
7: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2
8: K114B Hybrid/EV Powertrain Control Module 2 K114B Hybrid/EV Powertrain Control Module 2 X1K114B Hybrid/EV Powertrain Control Module 2 X2
9: C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery
10: B63LR Side Impact Sensor - Left Rear (AYF/AW7) B63LR Side Impact Sensor - Left Rear
11: F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
12: B28D Door Ajar Switch - Driver B28D Door Ajar Switch - Driver

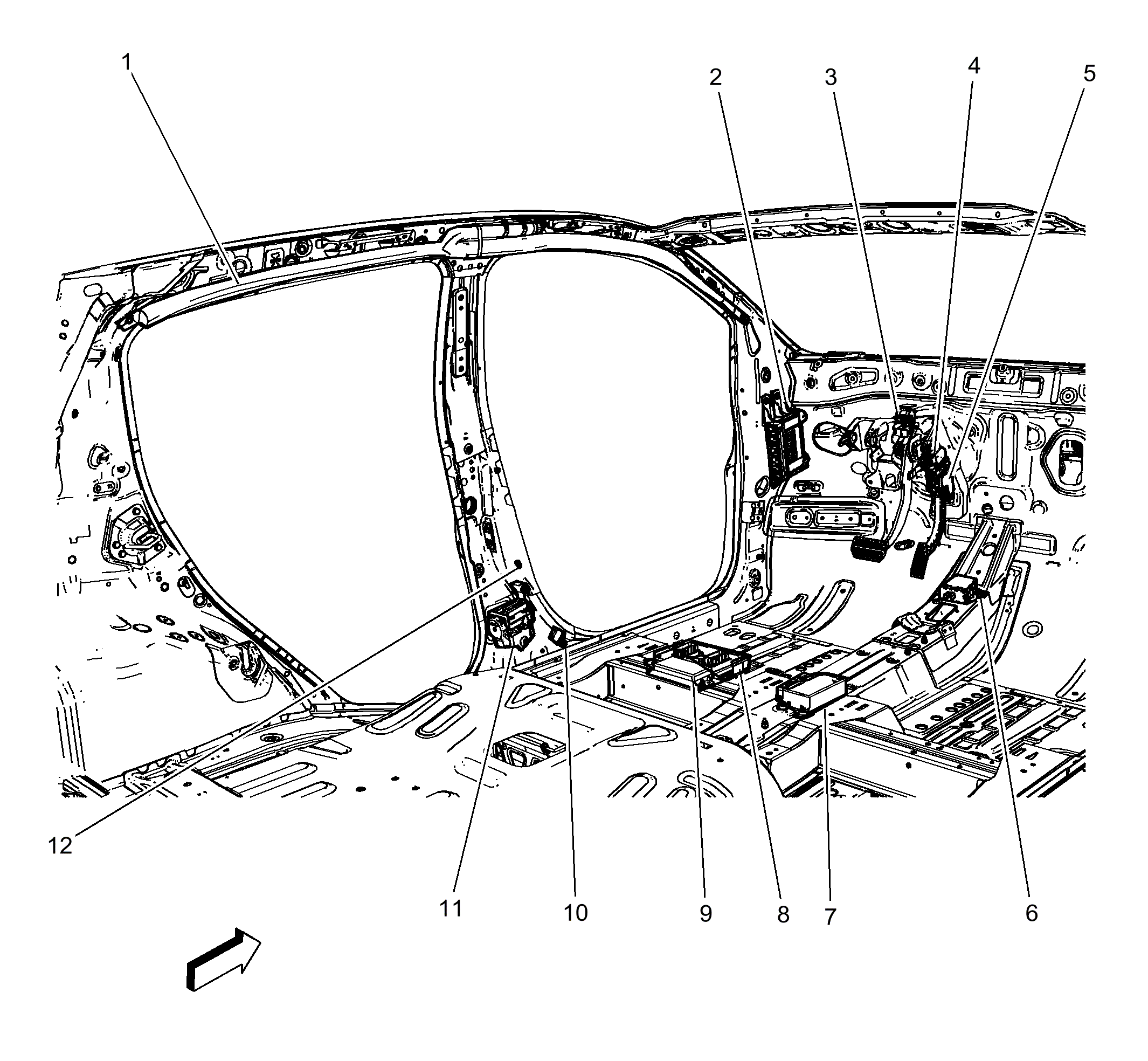

Fig 1: Left Front of Passenger Compartment Components

Courtesy of GENERAL MOTORS COMPANY
