Left Rear Vehicle Components

Left Rear Vehicle Components

Items
1: P28 Speaker - Parking Assist (UD7) P28 Speaker - Parking Assist
2: K41R Rear Parking Assist Control Module (UD7) K41R Rear Parking Assist Control Module

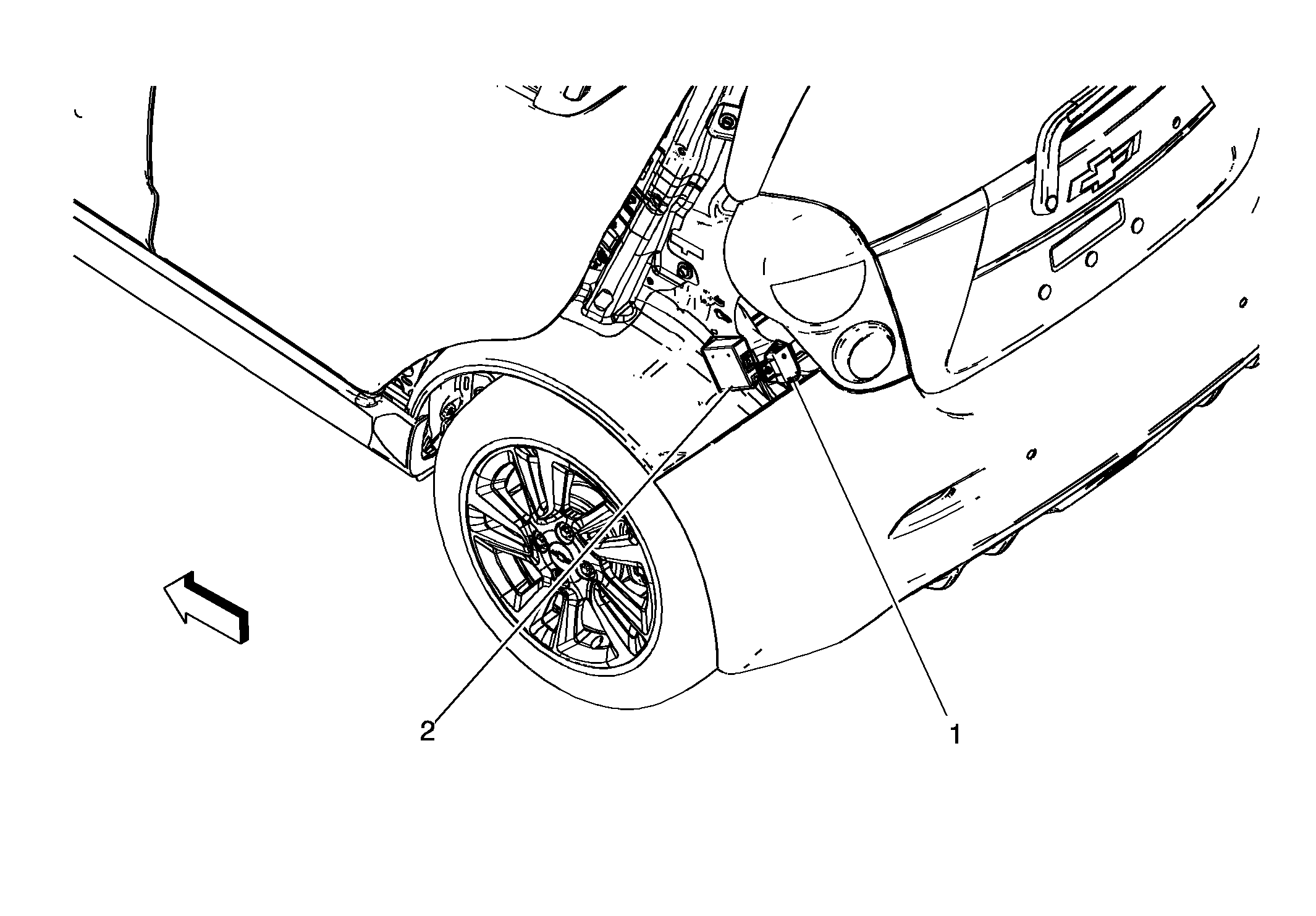

Fig 1: Left Rear Vehicle Components
GM3216385Courtesy of GENERAL MOTORS COMPANY
