Front of Vehicle Behind Fascia

Front of Vehicle Behind Fascia

Items
1: G24 Windshield Washer Pump G24 Windshield Washer Pump
2: G19 Rear Window Washer Pump G19 Rear Window Washer Pump
3: P12 Horn P12 Horn
4: P48 Pedestrian Alert Sound Speaker P48 Pedestrian Alert Sound Speaker
5: M96 Active Grille Air Shutter Actuator M96 Active Grille Air Shutter Actuator

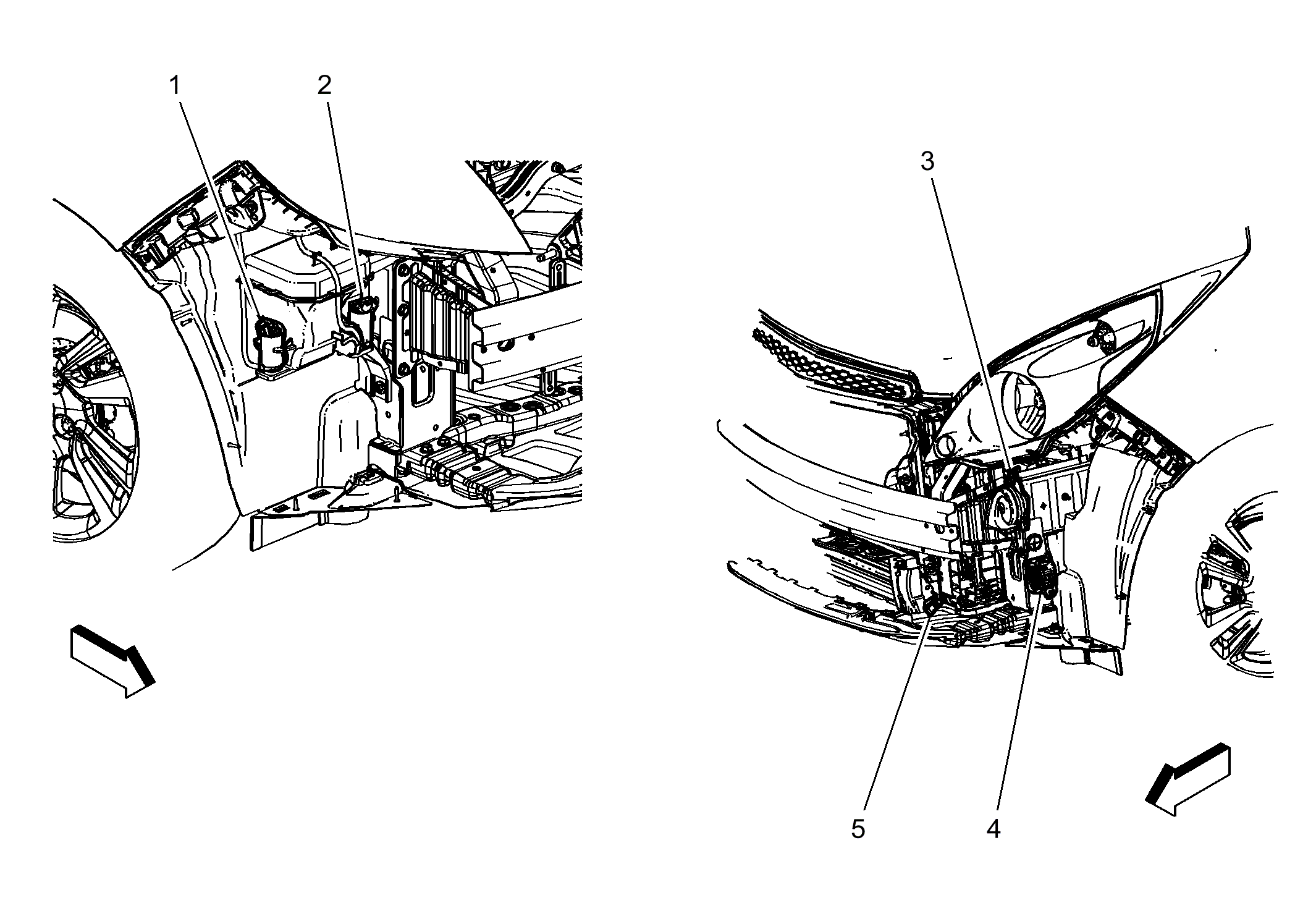

Fig 1: Front Of Vehicle Behind Fascia
GM3216401Courtesy of GENERAL MOTORS COMPANY
