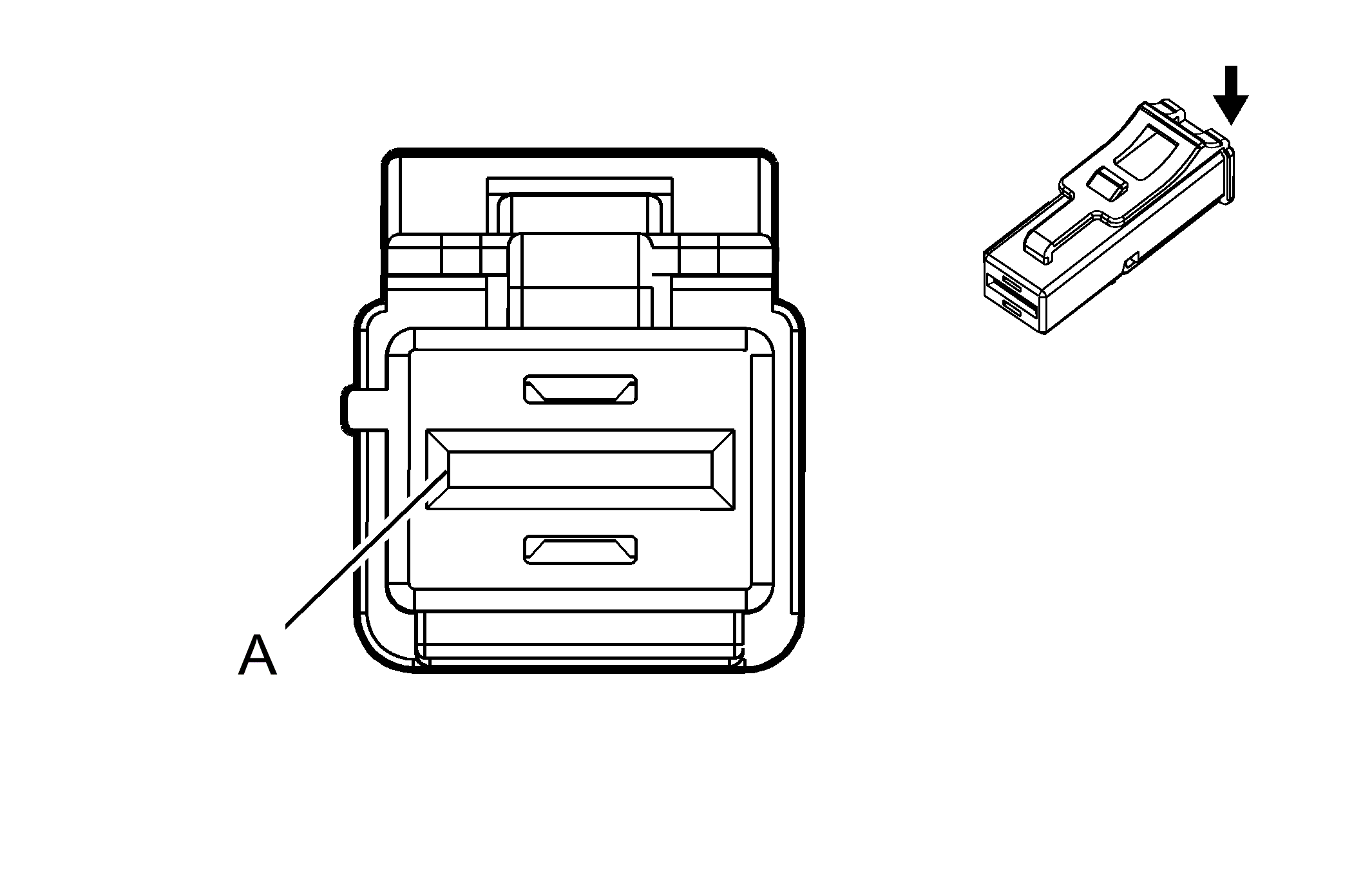

X51A Fuse Block - Instrument Panel X1
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 2005400-2
- Service Connector: Service by Harness Assembly- See Part Catalog
- Description: 1-Way F 9.5 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
10 |
RD/WH |
2740 |
Battery Positive Voltage |
I |
- |
