Windshield Washer Nozzle Hose Replacement

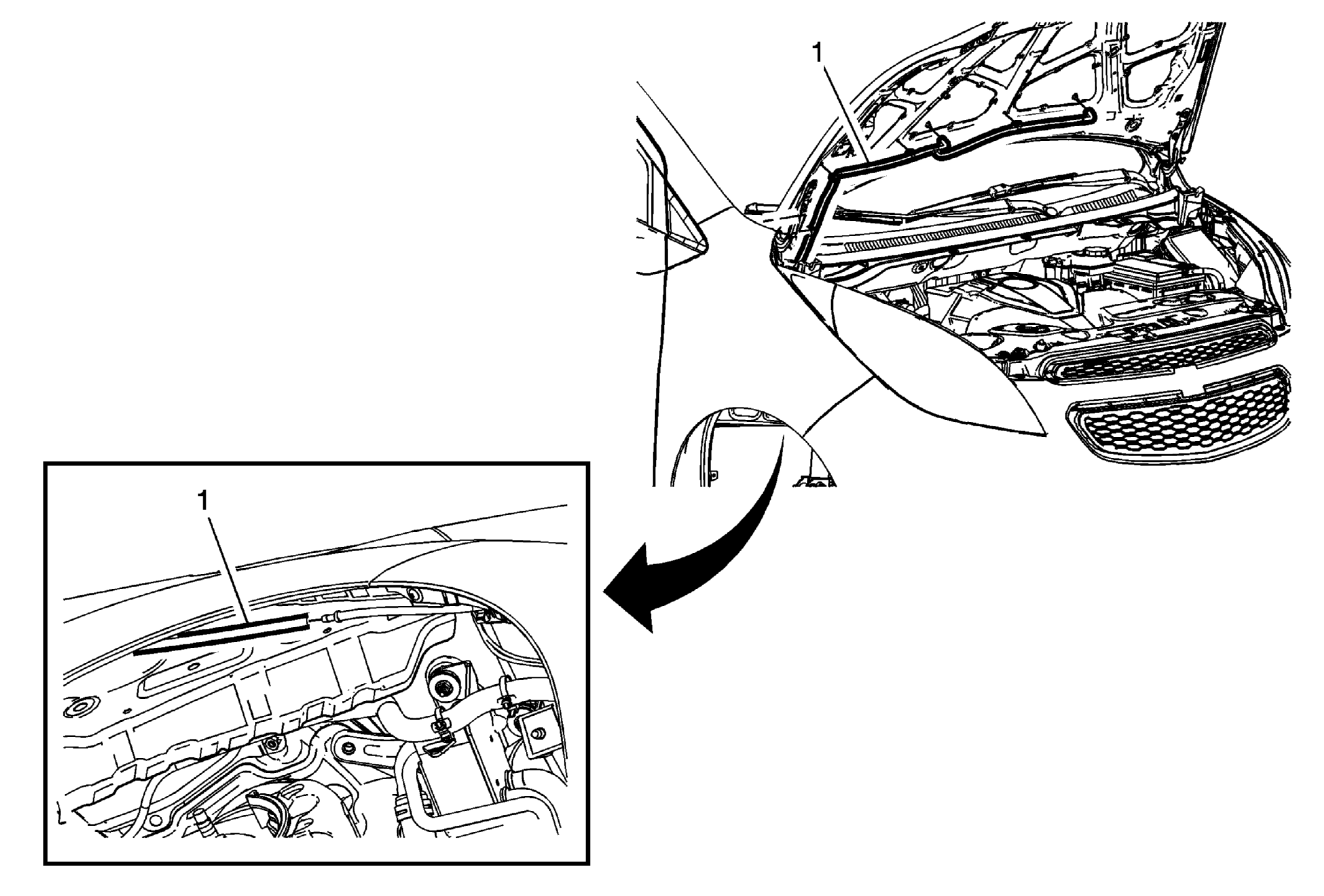

Fig 1: Windshield Washer Nozzle Hose
GM3213124Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the hood insulator. Refer to Hood Insulator Replacement .
  2. Remove the front wheelhouse liner - right side. Refer to Front Wheelhouse Liner Replacement - Right Side .
1 Windshield Washer Nozzle Hose

Procedure

  1. Disconnect windshield washer nozzle hose from above the windshield washer solvent container at the hose connector.
  2. Gently pull the windshield washer nozzle hose through from the engine compartment.
