Hood Rear Weatherstrip Replacement

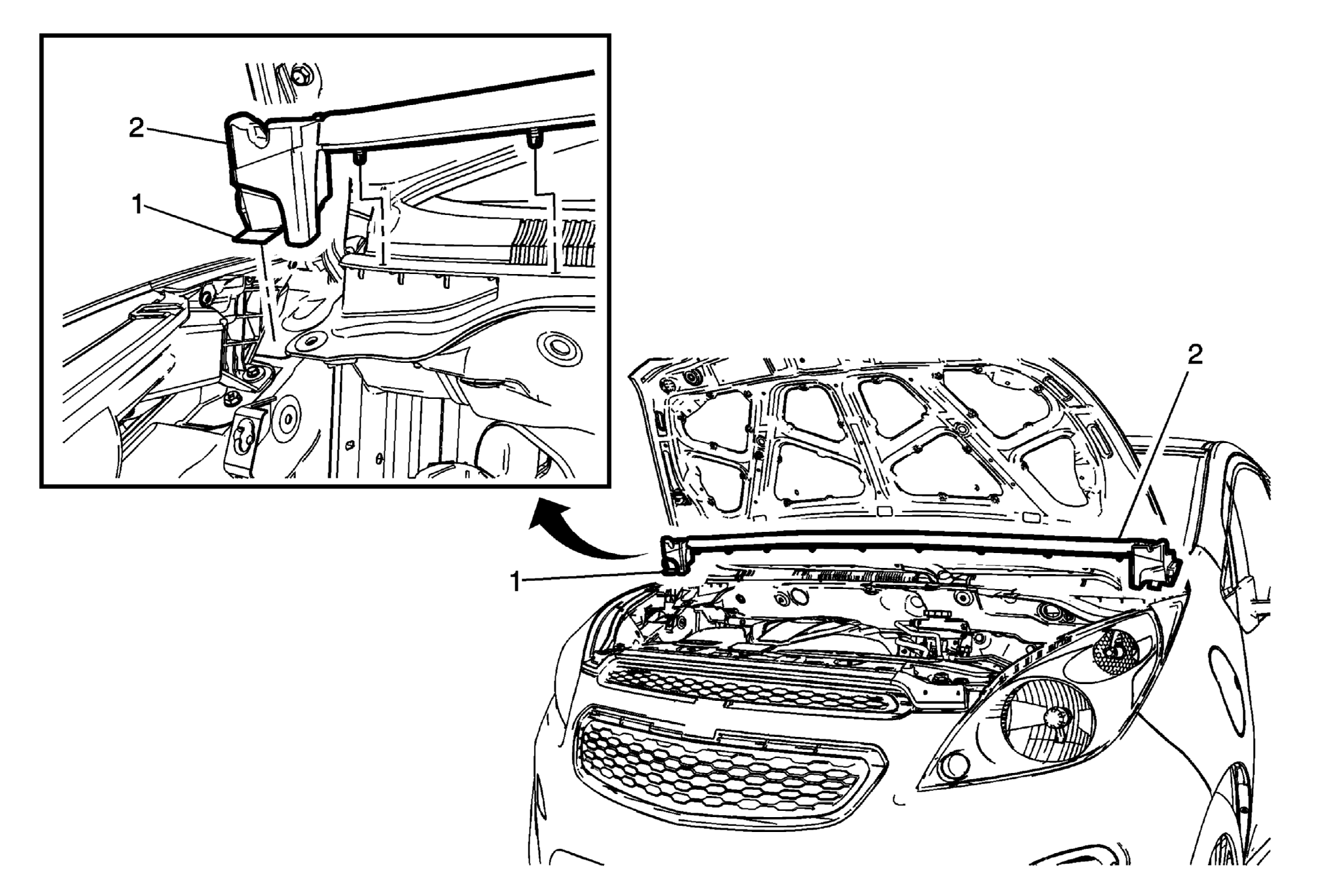

Fig 1: Hood Rear Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Rear Weatherstrip Removal Procedure Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille.
2	Hood Rear Weatherstrip Installation Procedure Clean the area where the weatherstrip end will be mounted. Use a suitable solvent with a mixture of 50 percent isopropyl alcohol and 50 percent water by volume or high flash naphtha.
