Hood Primary and Secondary Latch Replacement

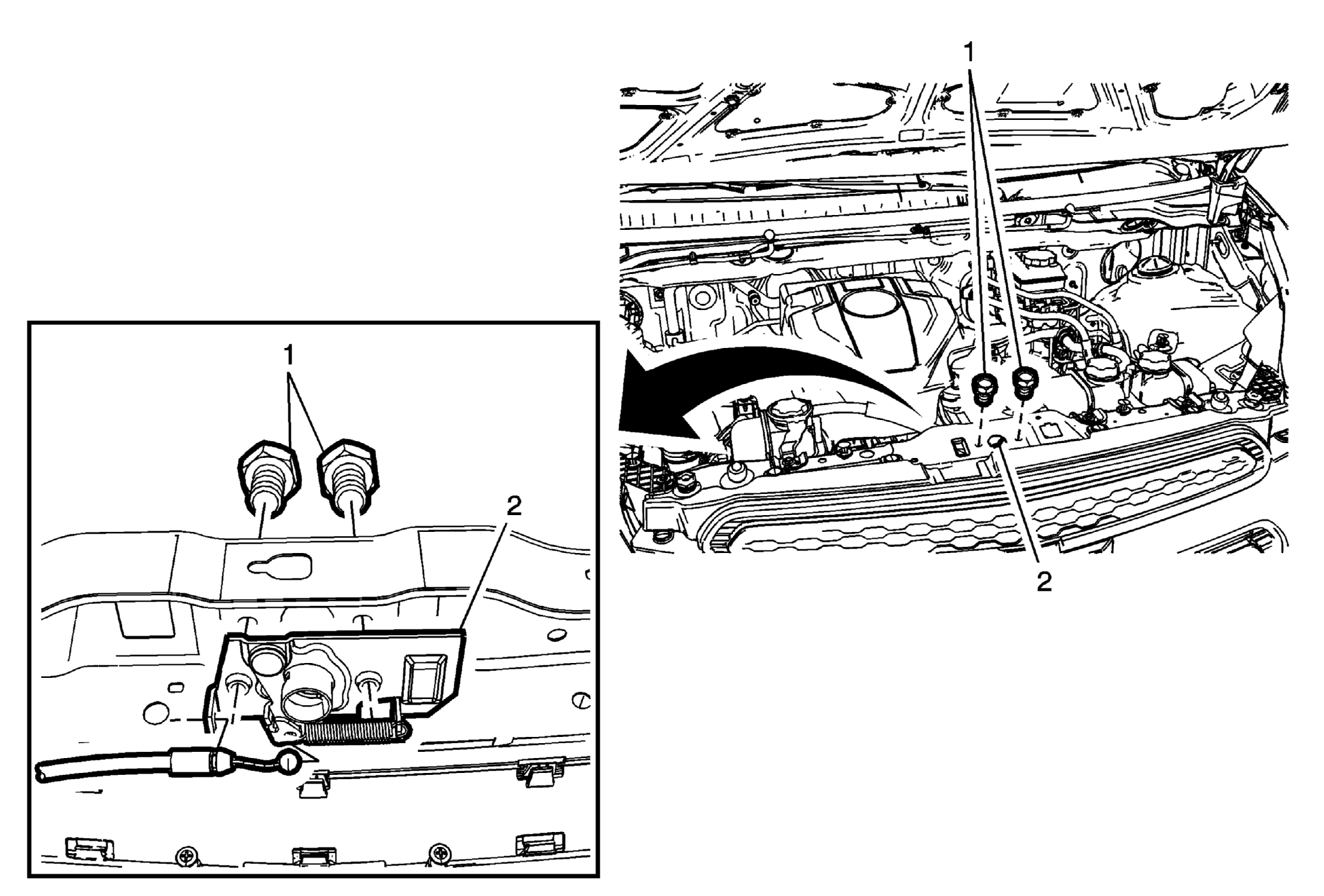

Fig 1: Hood Primary and Secondary Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1	Hood Primary and Secondary Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Hood Primary and Secondary Latch Procedure Disconnect the release cable from the hood primary latch. Disconnect the electrical connector, if equipped.

Callout

Component Name

Preliminary Procedure
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .

Hood Primary and Secondary Latch Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

Hood Primary and Secondary Latch

Procedure
