Power, Ground, Data Communication and Indicators

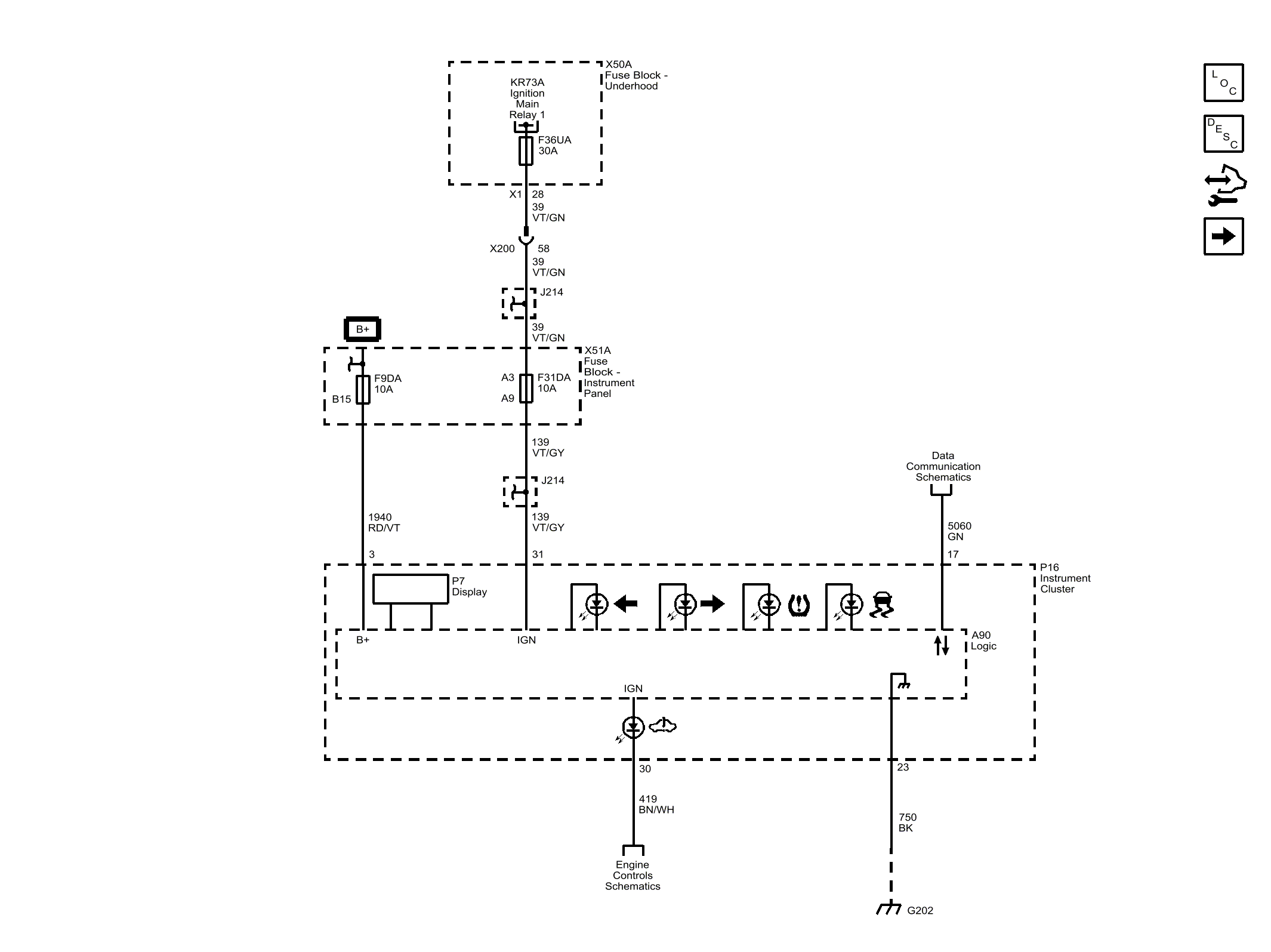

Fig 1: Power, Ground, Data Communication and Indicators

GM3666174

Courtesy of GENERAL MOTORS COMPANY
