F101 Passenger Instrument Panel Air Bag X1
|
|

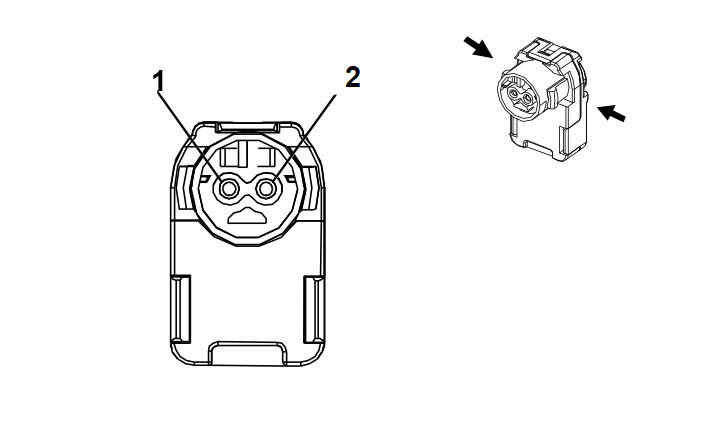

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 19178106
- Service Connector: 19178106
- Description: 2-Way F 0.64 Series, Sealed (L-GN with YE cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-35 (VT) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
1:YE/OG |
1:3025 |
1:Passenger IP Module Stage 1 High Control |
I |
- |
| 2 |
0.5 |
2:OG/WH |
2:3024 |
2:Passenger IP Module Stage 1 Low Control |
I |
- |
