Steering Wheel Spoke Lower Cover Replacement

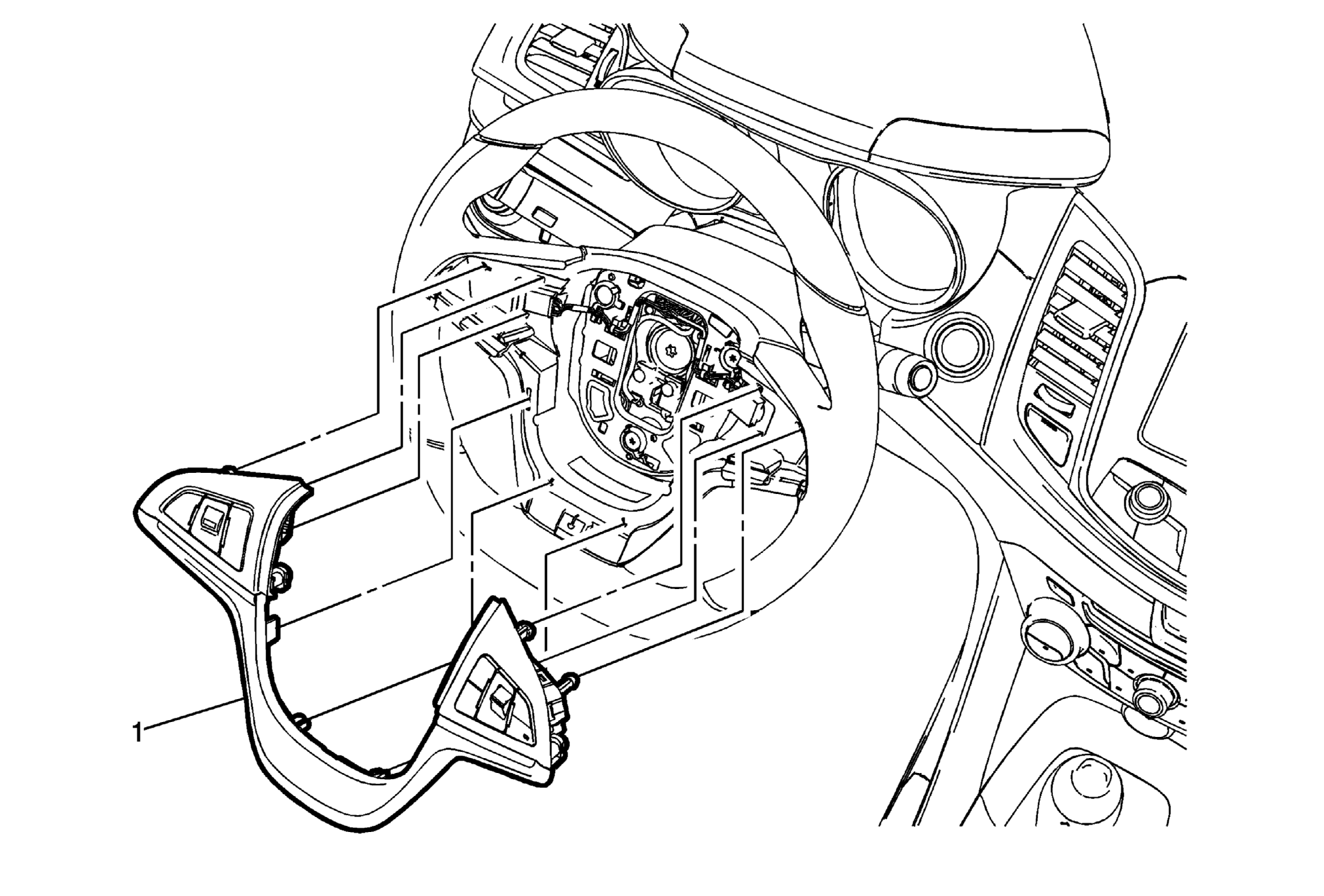

Fig 1: Steering Wheel Spoke Lower Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1	Steering Wheel Spoke Lower Cover Procedure Use the appropriate tool to gently release the retaining tabs on the cover. Disconnect the electrical connections. NOTE: Gently release tabs one by one, using care to avoid snapping the tab off.

Callout

Component Name

Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .

Steering Wheel Spoke Lower Cover

Procedure

NOTE:

Gently release tabs one by one, using care to avoid snapping the tab off.
