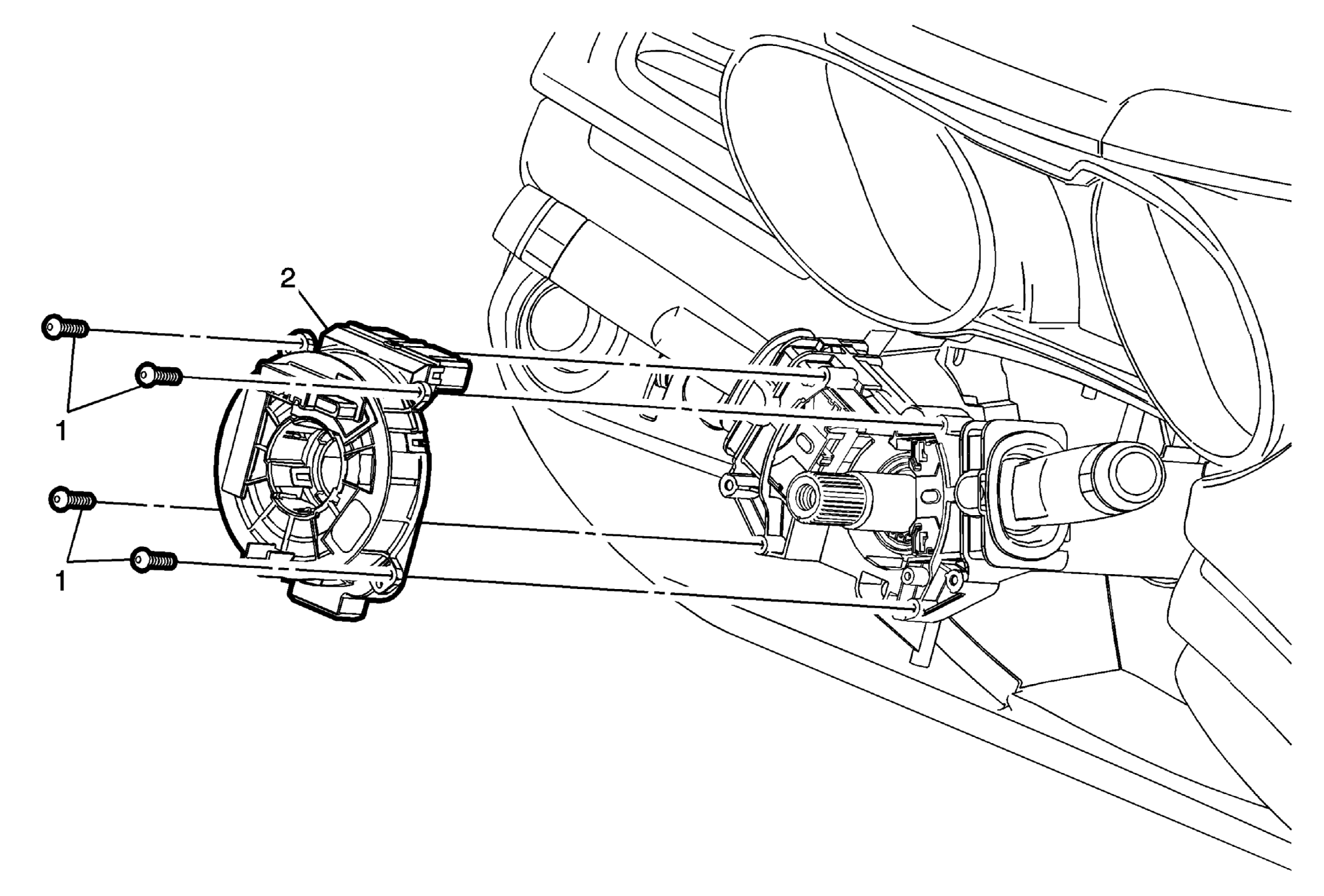

Steering Wheel Airbag Coil Replacement

Preliminary Procedures

1. Remove the steering wheel. Refer to Steering Wheel Replacement .
2. Remove the steering column upper and lower trim covers. Refer to Steering Column Lower Trim Cover Replacement .

Procedure

1. Disconnect the electrical connectors.
2. Transfer the steering angle sensor. Refer to Steering Angle Sensor Replacement .
3. Ensure the steering wheel airbag coil is centered during installation. If installing a NEW coil, remove the centering tab AFTER the coil is on the steering column. Refer to Airbag Steering Wheel Module Coil Centering .
