Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Bezel Replacement

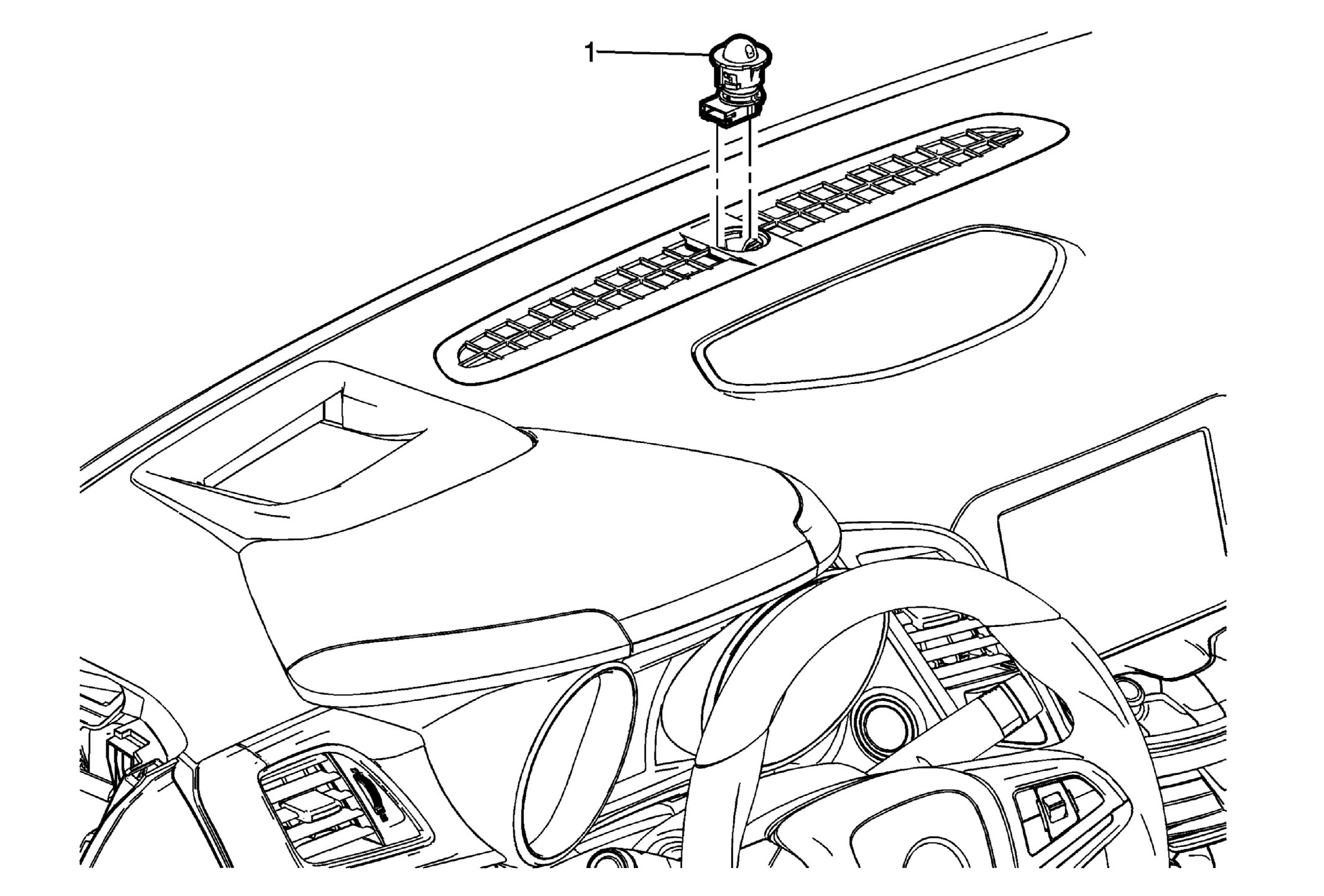

Fig 1: Sun Load Temperature & Headlamp Automatic Control Ambient Light Sensor Bezel
GM3402872Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Bezel

Procedure

  1. Use a flat bladed plastic trim tool in order to release the bezel secured to the instrument panel assembly.
  2. Disconnect the electrical connection.
  3. Transfer components as necessary.
