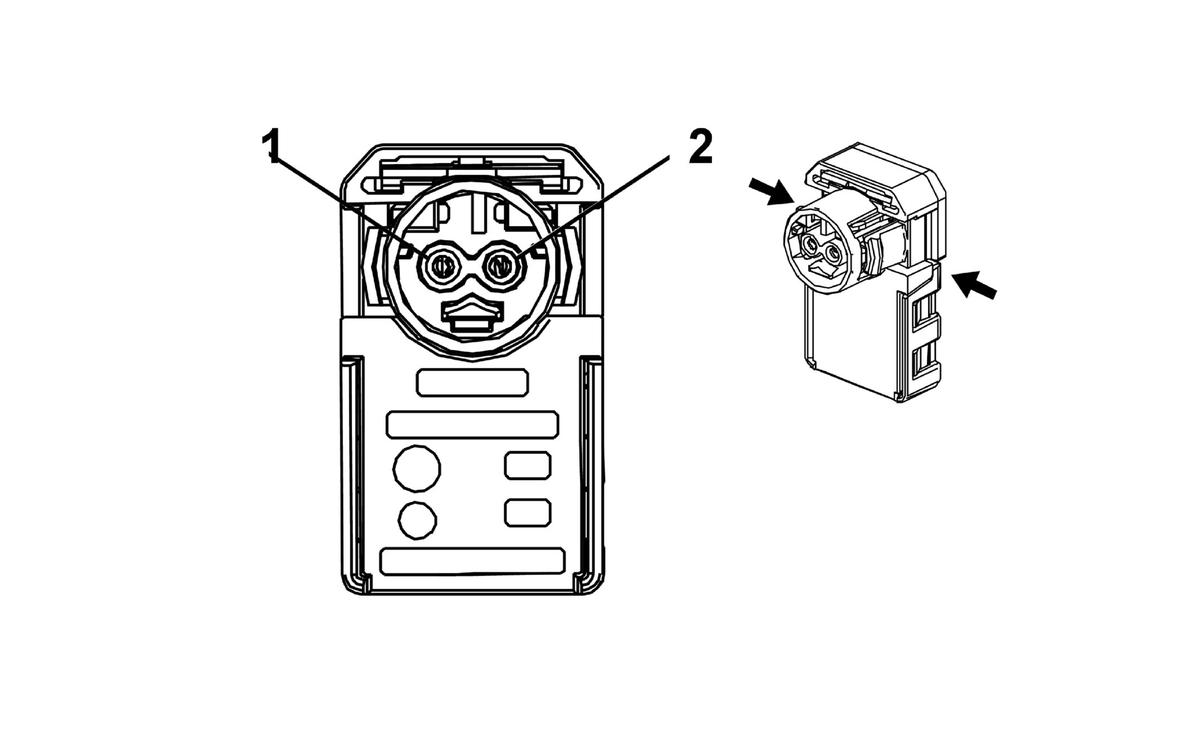

F114P Knee Air Bag - Passenger
|
|
Connector Part Information
- Harness Type: Passenger Knee Air Bag
- OEM Connector: 13262034
- Service Connector: 13580445
- Description: 2-Way F (BK with YE cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
1:OG/BU |
1:3076 |
1:Passenger Knee Module High Control |
I |
- |
| 2 |
0.5 |
2:WH/OG |
2:3077 |
2:Passenger Knee Module Low Control |
I |
- |
