Driver or Passenger Seat Removal and Installation

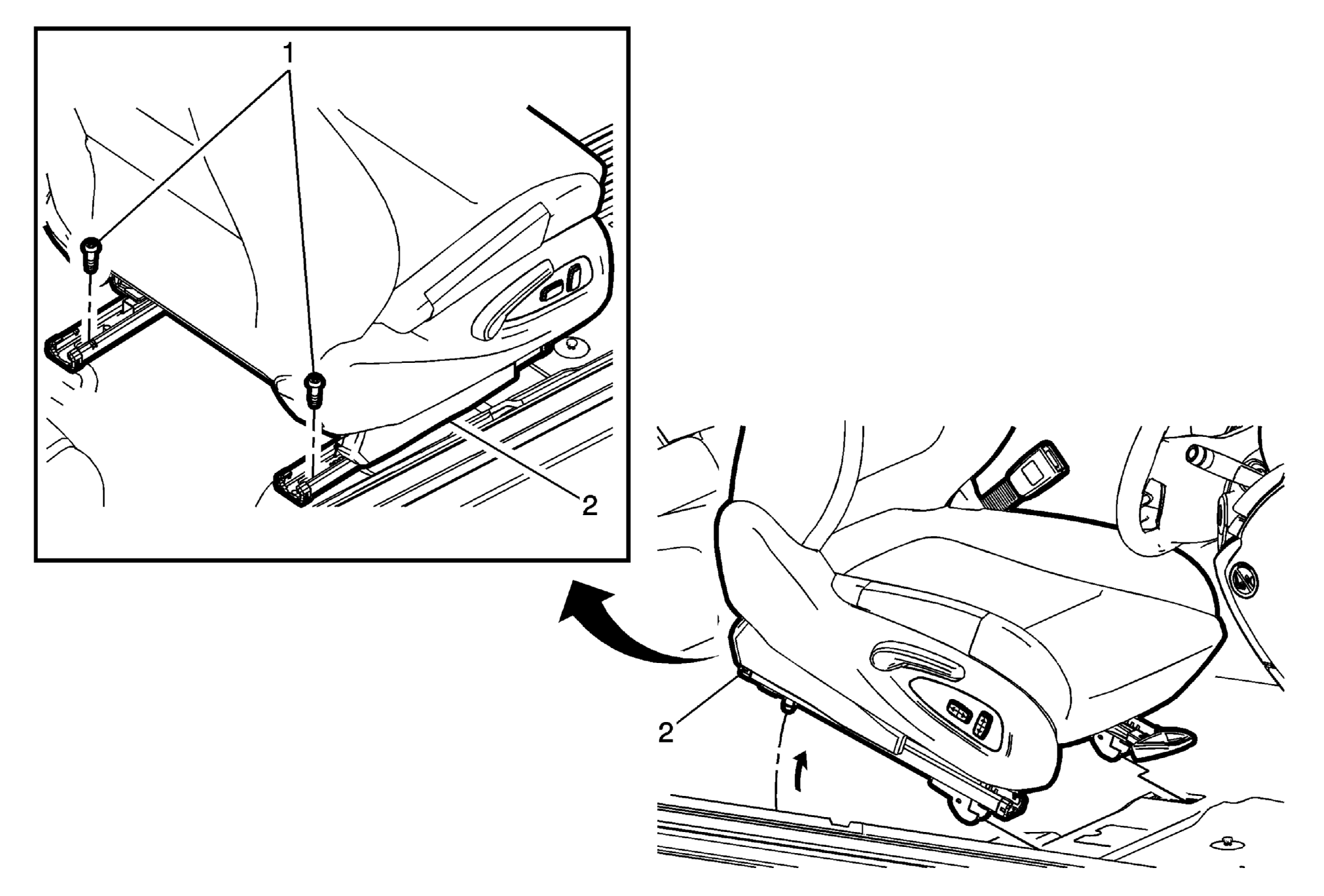

Fig 1: Driver or Passenger Seat

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Driver or Passenger Seat Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Adjust the seat to the forward position to gain access to the rear bolts. Tighten 45 N.m (33 lb ft)
2	Driver or Passenger Seat Assembly Procedure Disconnect the front seat electrical connector, and passenger presence system connector, if equipped. With the aid of an assistant remove the front seat, by tilting the seat forward, and then lifting and pulling the seat rearwards to disengage the 4 front foot hooks.

Callout

Component Name

WARNING:

Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .

Driver or Passenger Seat Bolt (Qty: 2)

CAUTION:

Procedure
Adjust the seat to the forward position to gain access to the rear bolts.
Tighten
45 N.m (33 lb ft)

Driver or Passenger Seat Assembly

Procedure

Disconnect the front seat electrical connector, and passenger presence system connector, if equipped.
With the aid of an assistant remove the front seat, by tilting the seat forward, and then lifting and pulling the seat rearwards to disengage the 4 front foot hooks.
