Rear Compartment Lid Release Switch Bezel Replacement

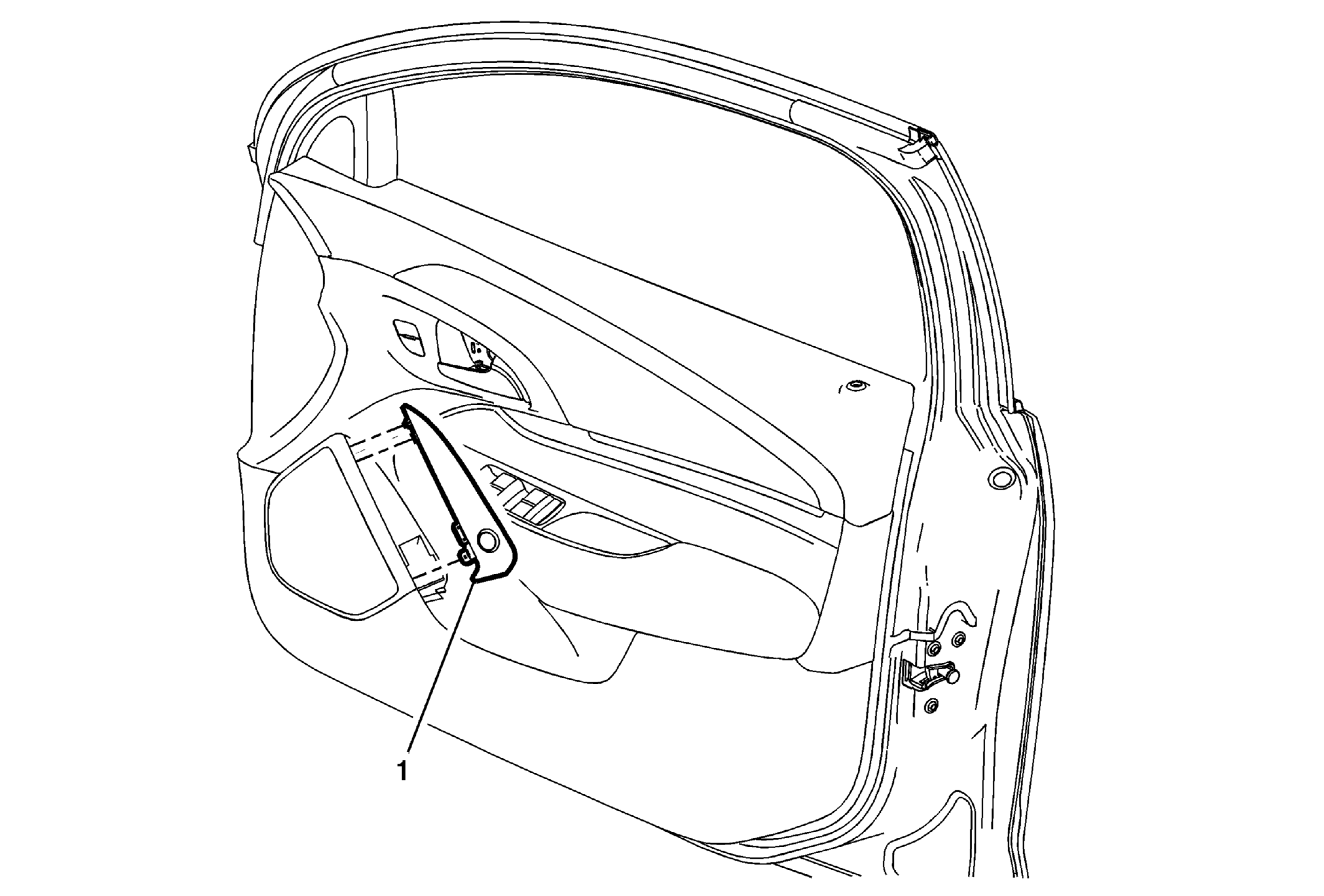

Fig 1: Rear Compartment Lid Release Switch Bezel
GM3232067Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Compartment Lid Release Switch Bezel Assembly

Procedure

  1. Use a flat-bladed plastic trim tool in order to release the rear compartment lid release switch bezel from the door trim assembly.
  2. Disconnect the electrical connector from the switch assembly.
  3. Transfer parts as necessary.
