Instrument Panel Molding Replacement

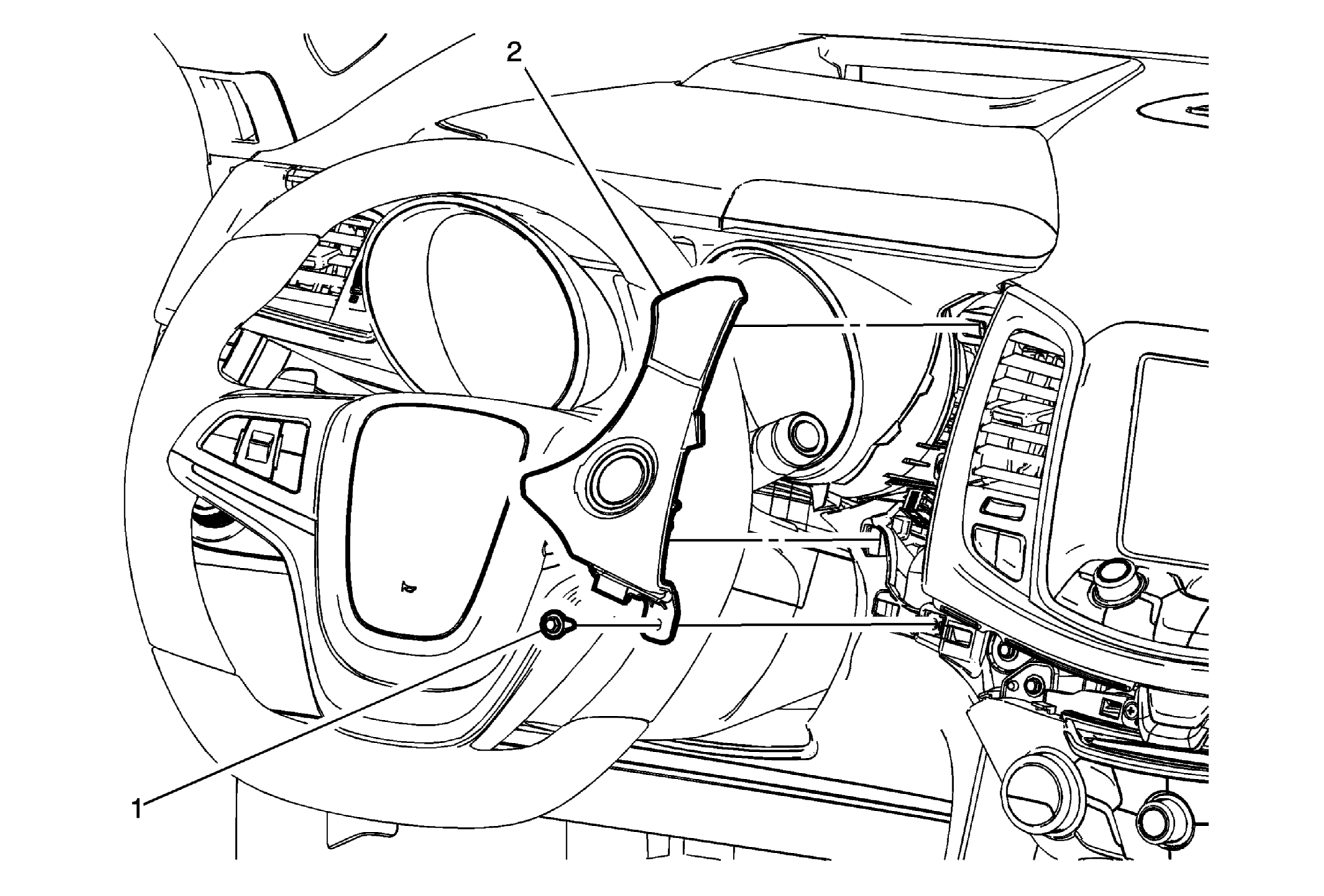

Fig 1: Instrument Panel Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
1	Instrument Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Molding Procedure Use a flat bladed plastic trim tool in order to release the retainers securing the molding to the instrument panel assembly. Disconnect the electrical connection. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .

Instrument Panel Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Molding

Procedure

Use a flat bladed plastic trim tool in order to release the retainers securing the molding to the instrument panel assembly.
Disconnect the electrical connection.
Transfer components as necessary.
