Instrument Panel Instrument Cluster Hood Replacement

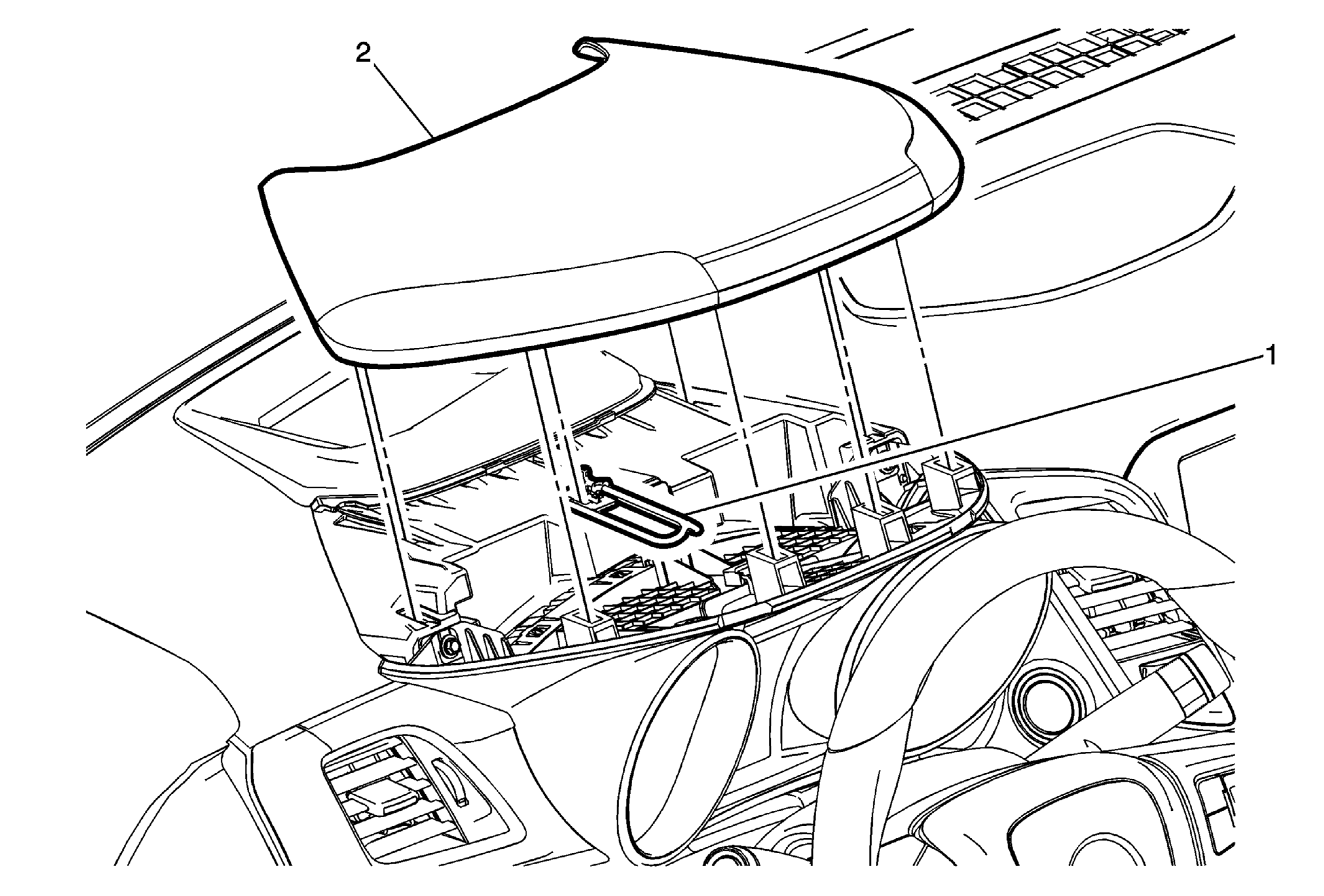

Fig 1: Instrument Panel Instrument Cluster Hood

GM3530731

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Instrument Panel Instrument Cluster Hood Retainer

2

Instrument Panel Instrument Cluster Hood

Procedures

Use a flat bladed plastic trim tool in order to release the retainer clips securing the hood to the instrument panel assembly.
To release the instrument panel cluster hood retainer, grasp the retainer with pliers and rotate until the first hooks are aligned with the cut-out. Pull through then rotate a further 90 degrees to align the second hooks with the cut-out. Pull through and remove.
